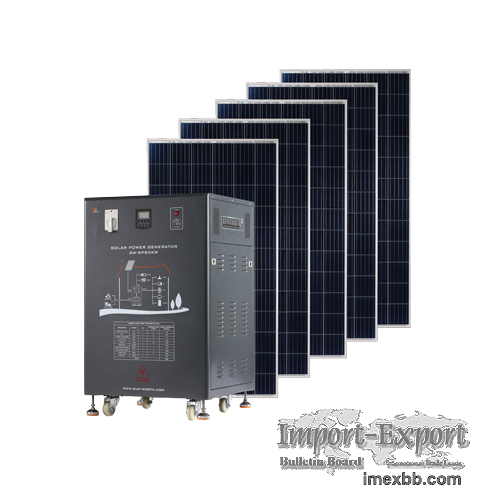

Off Grid 1~5KW Solar Power Storage System with Lead-acid Battery

Sunworth, as one of the professional solar equipment suppliers and solar
systems providers, implementing strict international standard quality
management system ISO 9001:2015 and ISO14001:2015.

1~5KW Off-grid Solar Power Storage System include 320Watt solar module,
24V100Ah to 48V200Ah GEL batteries, MPPT controllers, and off-grid solar
inverter. Rated Power: 1KW-5KW, pure sine wave output.

Advantage of Off Grid 1-5KW Solar Power Storage System with Lead acid Battery
for Solar Panel
LCD display and setting.
ISO19001, ISO14001 certified supplier, 2- year warranty.
Optional personalized customized services.
Simple and quick installation..

Specifications of Off Grid 1-5KW Solar Power Storage System with Lead acid
Solar Battery Technical Data
Model No. SW-SPS1KW SW-SPS2KW SW-SPS3KW SW-SPS4KW
SW-SPS5KW
Solar panel power 2x320Wp 4x320Wp 6x320Wp 8x320Wp 10x320Wp
Lead-acid / GEL Battery 2.4KWh 4.32KWh 7.2KWh 8.64KWh 9.6KWh
Rated power 1KVA/1KW 2KVA/2KW 3KVA/3KW 4KVA/4KW
5KVA/5KW
Surge rating 2KVA 4KVA 6KVA 8KVA 10KVA
Max. Solar charge MPPT 40A MPPT 60A MPPT 60A MPPT
80A MPPT 80A
Max. AC Charge 20A 30A 15A 60A 60A
Input Voltage AC 220V/230V 50Hz
Output charge AC 220V/230V 50Hz, 1x Flash Charge USB, 2x5V USB(2.1A)
Protection Surge, Reverse polarity, Overload, Short circuit, etc.
Operating Temperature Discharge: -20℃ ~50℃, Charge: 0℃~50℃
IP Rating IP22
Power Box 45x45x65cm 65*54*65cm 60*60*95cm 65*65*95cm
65*65*95cm
Weight 150Kgs 240Kgs 360Kgs 450Kgs 530Kgs
20GP 53 sets 40 sets 28 sets 25 sets 19sets

Common Loading of Off Grid 1-5KW lead acid battery for solar storageSystem with
Lead-acid Battery
Individual load Power Qty Working hours day Power consumption per
day
LED Light 5W 1 6 30Wh
TV(19' color) 60W 1 4 240Wh
Computer 60W 1 4 240Wh
Fan 20W 1 6 120Wh
Refrigerator 100W 1 24 800Wh
Fax 150W 1 0.5 75Wh
Washing machine 300W 1 0.5 150Wh
Printer 250W 1 0.5 125Wh
Air conditioner 1000W 1 4 4000Wh

Minimum Order: 10 sets
