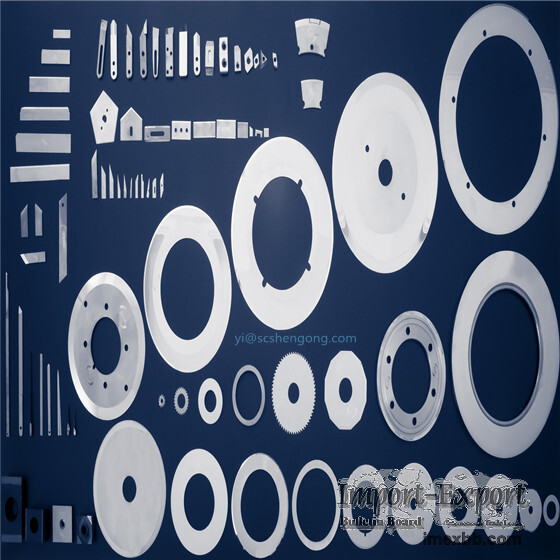

OEM Tungsten Carbide Slitter Knives For Paper Milling And Converting

Brief Introduction
1. The knife is made of virgin tungsten carbide materials.
2. The knife edge is sharp, smooth, sharp and durable, imported precision
processing equipment can process a variety of non-standard products to ensure
the precision of the products.
3. The Blade harness reaches HRA90~93. Insure the quality and sharpness.

We manufactures an extensive range of knives/blades for customers are
industries from corrugated cutting, paper core slitting, corrugator packing
machineries. Our carbide slitters for cardboard compatible with machines like
BHS, Agnati, Marquip, Fosber, Peters, Isowa, Mitsubishi, Hsieh Hsu etc.
Our slitting blades for corrugated cardboard are made from ultra-fine tungsten
carbide powder and cobalt powder is an ideal option for slitting corrugated
board (3/5/7-ply) in carton making industry. We are determined to provide the
carbide razor slitters which have high quality and reasonable cost.
Product Parameters
Dimension Apply to Number of holes Holes diameter
220×115×1.0mm
Agnati 3 9mm
240×115×1.0/2.0mm 3 9mm
240×32×1.2mm BHS 2 8.5mm
230×110×1.1mm Fosber 6 9mm
230×135×1.1mm 6 9mm
291×203×1.1mm 6 8.5mm
260×140×1.1mm Isowa 6 9.5mm
260×168.3×1.2/1.3 Marquip 8 10.5mm
280×202×1.4mm Mitsubishi 6 7.6mm
280×160×1.1mm 6 7.6mm
250×150×0.8mm Peters
250×150×1.2mm
300×122×1.2~1.5mm TCY 6 12mm
200×122×1.2mm Justu
260×158×1.4/1.5mm 8 11mm
230×110×1.3/1.4mm Kaituo
265×112×1.4mm Oranda
270x168.3*1.4mm Hsieh Hsu 8



Circular Slitting knives are widely used in the following fileds:
• Printing
• paper converting,packaging
• foil ,film,tape
• tobacoo
• plastic & rubber
• nonwoven & textile
Etc

Specification
Size 60,80,250 mm or customized
Material Tungsten carbide
Surface Roughness ≤Ra0.2
Hardness 89~93HRA
OEM service Available

Material Carbide, hard metal
Place of Origin China (Mainland)
Certificate ISO9001,ISO14001,ISO45001
Advantage Super Hardness, High Precession, Long use life, Better
performance
Size 20mm-600mm
Custom order accepted
Coating TiN, TiCN etc

Minimum Order: 1 pieces
