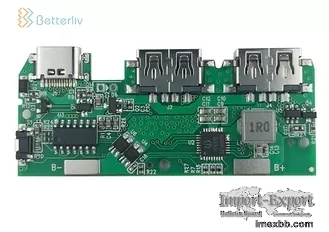

OEM ODM Rigid Printed Power PCBA For Power Supply Circuit Board

OEM ODM Rigid printed pcb assembly for power supply circuit board supplier pcba
manufacturer



Specification of PCBA Assembly

PCBA Type of Assembly SMT,DIP, Mixed(surface mount and through hole)
technology,Cable assembly
Solder Type of electronic PCBA Water Soluble Solder Paste,Leaded and Lead-Free
Minimum IC Pitch for OEM PCBA 0.2mm
Minimum chip size PCBA board 0201 (0.2x0.1)/0603 (0.6 x 0.3mm)
Maximum BGA size SMT Assembly PCBA 74x74mm
BGA ball pitch PCBA 1.00mm (minimum),3.00mm (maximum)
BGA ball diameter Pcba Assembly 0.40mm (minimum),1.00mm (maximum)
Components BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly pcba
Fine Pitch to 0.8mils
BGA Repair and Reball
Passive components
As small as 0402 package
As small as 0201 with design review
Ball Grid Arrays(BGA)
As small as .5mm pitch
Part Removal and Replacement
Bare Board Size Smallest:0.25*0.25 inches
Largest:20*20 inches
File Formate Bill of Materials
Gerber files
Pick-N-Place file
Types of Service Turn-key,partial turn-key or consignment
Component packaging Cut Tape,Tube,Reels,Loose Parts
Turn Time Same day service to 15 days service
Testing First prototype test before mass quantity production,Flying Probe Test,X-
ray Inspection AOI Test,BGA X-ray, PCB E-test


PCB/PCBA services

1. Test: ICT and functional with full tech and engineering support staff

2. FR-4, FR-4 High TG, CEM-1, CEM-3, Aluminum base material.

3. Single-sided PCB, double-sided PCB, multi-layer PCB, competitive price, good
quality and good service.

4. Prototype qualifications through production volumes
5. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
6. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2
international PCB standard.
7. Quantities range from prototype to medium and batch production.



Our advantages

Betterliv offers low to medium volume, high mix, PCBA services and end-to-end
integration services for products in industries including life-science,
pharmaceutical, power management, medical device, semiconductor, and alternative
energy. Betterliv with exceptional turnkey manufacturing services, we are able to
produce and fully integrate PCB assemblies for OEMs seeking a one-stop
manufacturing solution.


1. High-end, Small volume and Various kinds of PCBA service offered.
2. Speedy, Flexible and one-stop service in PCBA.
3. Assembly and Purchasing service offere or their pointed agents.
4. Transparent quotation,cost and benefit are detailedly opened to customer.
5. With professional Engineers and Long-term successful experience in cooperating
with customers inland and overseas, all new projects can be developed faster and
better than expected.
6. With USA or Japan imported tin cream and tin bar, and 100% AOI testing during
production, all PCBAs we made are more reliable.
