ODM Gold Finger PCB Board Fabrication High TG FR4 PCBA For Industrial Field

PRODUCT DESCRIPTION

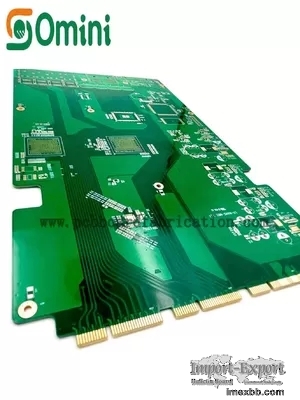

ODM Gold Finger High TG FR4 Multi-Layer PCB Board Fabrication for Industrial Field



Quick details:

Base Material: IT-170 GRA1

Copper Thickness: 2 oz

Board Thickness: 1.6 mm

Min. Hole Size: 8 mil

Min. Line Width: 6 mil

Min. Line Spacing: 6 mil

Surface Finishing: ENIG 1U"

Board Size: Customize

Application: Computer, Power Modules, Lamps, Lighting

Maximum board width: Customize

Type: PCB Board Fabrication

Certificate: TS16949.ISO14001.ROHS. ISO9001

Color: Green

Package: Vacuum packaging+Foam cotton+Carton +Strap



Description of Omini PCB Printed Circuit Board

1. Gold finger high TG (Glass Transition Temperature) FR4 multi-layer PCB boards
are specialized circuit boards designed for use in industrial applications. These
PCBs are manufactured using high-quality materials and advanced manufacturing
processes to ensure durability, reliability, and long-term performance in harsh
industrial environments.



2. The gold finger design on the edge of the PCB allows for easy and secure
connections to other components or devices. This is particularly useful in
industrial applications where the PCB may need to be connected to other systems or
devices for data transfer or control.

The high TG FR4 material is a type of fiberglass reinforced epoxy laminate that has
a higher glass transition temperature, making it more resistant to heat and thermal
stress. This makes it ideal for use in industrial applications where the PCB may be
exposed to high temperatures or thermal cycling.



3. The multi-layer design of these PCBs allows for greater flexibility in circuit
design and layout, enabling more complex circuits and high-density
interconnections. This is especially important in industrial applications where
space may be limited and functionality needs to be maximized.

Overall, gold finger high TG FR4 multi-layer PCB boards are specifically designed
to meet the demanding requirements of the industrial field. They are manufactured
to strict quality standards and undergo extensive testing to ensure they meet or
exceed industry specifications for durability, reliability, and long-term
performance.



Specification of Omini Multi - layer Printed Circuit Board

Layer 2-24 layer
Material
FR-4 Standard Tg 150℃, FR4-HighTg170℃, FR4- High Tg180℃, FR4- Halogen- free,
FR4- Halogen- Free&High-Tg

Board thickness 0.4mm-5.0mm
Board side Min 6*6mm Max 600*700mm
Min.drilled hole size 0.25mm
Min.line width 0.075mm(3mil)
Min.line spaceing 0.075mm(3mil)
Surface finish/treatment Electroless/immersion gold/ENIG/Immersion
silver/OSP
Copper thickness 0.5 oz - 8.0 oz
Solder mask color green/black/white/red/blue/yellow
Inner packing Vacuum packing, Plastic bag
Outer packing Standard carton packing
Hole tolerance PTH:±0.076, NTPH:±0.05
Certificate UL, ISO9001, ISO14001, RoHS, CQC
Profiling Punching Routing, V-CUT, Beveling
Assembly Service Providing OEM service to all sorts of printed circuit board
assembly
SMD Pitch 0.2mm(8mil)
BGA Pitch 0.2mm(8mil)
Test 10V-250V, flying probe or testing fixture
