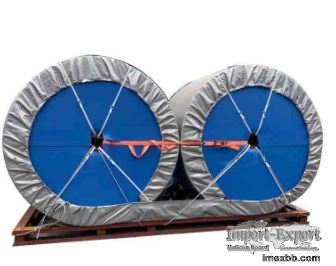

Nylon NN Rubber Conveyor Belts 8.0mm 7 Layers Black

1) The belt has good elasticity, impact resistance and abrasion resistance.
2) Good flexibility, easy to form grooves.
3) No mildew occurs.

technical standard:
National Standard GB/T7984-2001
Nylon (NN) conveyor belt:
Covering layer: the tensile strength is not less than 15Mpa, the elongation at
break is not less than 350%, the amount of wear is less than or equal to
200mm3.
The average value of the interlayer adhesion strength of the longitudinal
sample is not less than 4.5 N/mm between the cloth layers, and not less than
3.2 N/mm between the cover rubber and the cloth layers.
The full thickness longitudinal elongation at break is not less than 10%, and
the full thickness longitudinal reference elongation is not greater than 4%
Adhesive strength between layers of nylon conveyor belt:



Index item Between layers Between cover layer and cloth layer
Covering layer thickness ≤1.5mm Covering layer thickness>1.5mm
The average value of the longitudinal sample is not less than 4.5 3.2
3.5
The average value of the transverse sample is not less than 4.5 3.2
3.5
The highest peak value of all samples is not greater than 20 20
20
The lowest peak value of all samples is not less than 3.9 2.4 2.9
