NUKR 62 Cam Follower
Specifications of NUKR 62 Cam Follower
Designation NUKR62
(Mass)m≈g 795

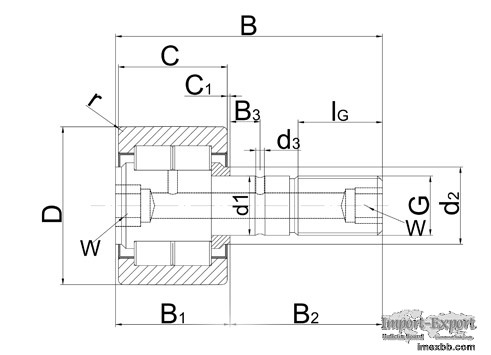

Dimensions D 62
d1 h7 24
B 80
B1 max 30.6
B2 49.5
B3 11
C 28
C1 1.3
r min 1
d2 38
d3 4
G M24X1.5
LG 25
W2) 14
Eccentric sleeve de h9 28
Be 22
e 1
Grease fitting NIPA3X9.5
Tighthening torque MA [Nm] 220
Basic load rating Basic dynamic load rating Crw [N] 39500
Basic static load rating Corw [N] 54000
Fatigue load limit Curw [N] 23000
Rotating speed nDG [min-1] 45800
Fatigue load limit Curw [N] 7200
Rotating speed nDG [min-1] 2600
As a bearing exporter, we have types of high quality for sale, if you have
needs, please contact us.
Minimum Order: 1 sets
)
