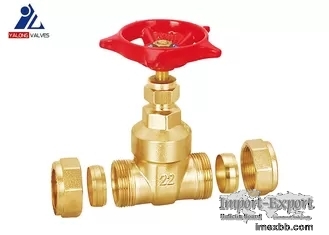

NPT 4 Inch Brass Gate Valve Flanged Red 170C AL Handle

YL114 1/2 Inch To 2 Inch Brass Flanged Gate Valve Red AL Handle Natrual Color
Union Nut



Description
​Working Pressure 1.6Mpa

Working Temperature from -10 ℃ to +120 ℃ (from 14℉ to 248℉)

Connection Threaded connection

Struction O-ring struction

​​

Details
​Brass Body: Forging, no blister, no air holes, no leakage. Made by special
high precision CNC machines.

Brass Bonnet: Made of brass material in good quality to ensure wall thickness
and is quite durable.

Brass Stem: Made of hot rolled brass with strong hardness and can effectivley
avoid deformation and fracturing.

Brass Gate: Made by special high precision CNC machines, the sealing surface is
as smooth as a mirror with excellent sealing performance.

Filler: Made of PTFE in good quality, with excellent sealing performance to
prevent leakage.

Handle: Made of aluminum in good quality, red surface painting , not easy to
oxidize and rot. Novel apperance and confortable using feeling.



Technical Specification
Male x Male brass gate valves with AL handle.
The color of handle, materials, thread( NPT, BSP) etc. can be customized.
Drawing


NPT 4 Inch Brass Gate Valve Flanged Red 170C AL Handle 0NPT 4 Inch Brass Gate
Valve Flanged Red 170C AL Handle 1

DN SIZE D H L B
15 1/2''
Φ13

62 44 55
20 3/4''
Φ19

68

46 65
25 1'' Φ24 82 52 65
32 1-1/4'' Φ30 92 57 80
40 1-1/2'' Φ35 103 59.5 98
50 2'' Φ50 128 66 100
