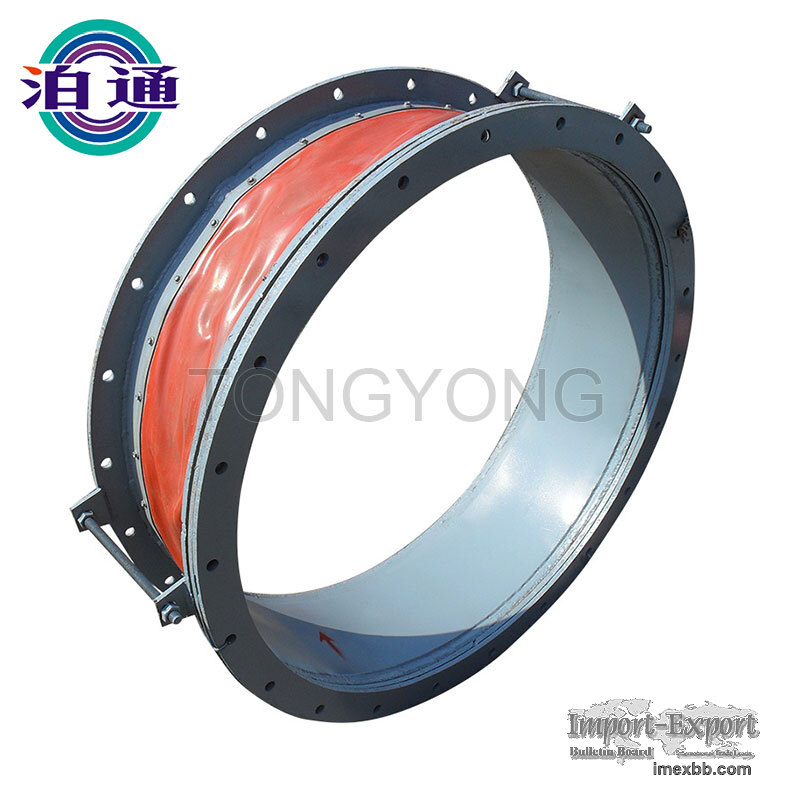

Nonmetallic Compensator

Product Description
The non-metallic compensator is composed of non-metallic skin, thermal
insulation filler, diversion tube, pressure plate and metal structural parts.
Also called non - metal flexible fabric compensator, non - metal expansion
joint. It is a flexible connection used to release pipeline stress and seal
gas medium.
The function of non-metallic compensator:
1. Absorb the thermal expansion and contraction of the pipeline caused by the
temperature difference;
2. The rigidity is low, the reverse thrust generated by the displacement is
very small, and the strength requirements for the support and equipment are
low;
3. Effectively isolate the vibration source equipment, prevent vibration
transmission, avoid resonance, and reduce system noise;
4. The weight of the non-metallic compensator is lighter, and the larger
diameter can be spliced on site. The non-metallic skin and metal components are
mechanically connected. The non-metallic skin and insulation layer can be
replaced easily and quickly on site, which can shorten the system downtime and
reduce Maintenance costs.
