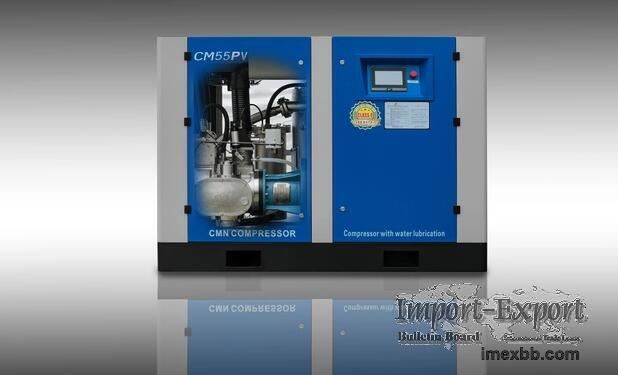

NO OIL WATER INJECTED SCREW AIR COMPRESSOR

Pure water instead of lubricating oil is used in air end for lubrication. Air
end and all parts contacting with water are made of 304 food grade stainless
steel. Compressed air passes TUV oil free test and also meets requirements of
FDA and GMP. With no oil in the whole machine, maintenance is simple which only
requires the replacement of air and water filter. Water injected screw
compressor adopts a direct coupling method between the air end and the motor,
resulting in high transmission efficiency. Due to the direct injection of water
for cooling circulation, the unit operates at a very low temperature which is
around 45 degrees Celsius.

Working Principle Of CMN No Oil water injected compressor
The single screw air end is composed of a main screw and two symmetrically
arranged flat star wheels to form a meshing pair, installed inside the
stainless steel shell. The screw's groove, the inner wall of the air end shell,
and the tooth surface of the star wheel constitute the compression chamber. The
motor directly drives the rotation of the screw shaft, which drives the
rotation of the star wheel. The gas enters the screw groove through the suction
port, undergoes compression, and is then expelled through the exhaust port on
the air end shell. There are spray holes on the air end shell for injection of
lubricating oil or water into the compression chamber, serving as sealing,
cooling, and lubricating functions.

Air is sucked into the air end through the air filter, getting compressed in
the air end. During compression, water in injected into air end to cool and
lubricate. Water gas mixture then is separated in gas water separator and
compressed air is discharged from the minimum pressure valve on the top of the
gas water separator to the user. Water remains at the bottom of gas water
separator, being cooled by the water cooler or air cooler, and goes to air end
for compression again.

Industry Applications of CMN non oil air compressor
No oil compressor finds extensive applications across various industries. In
the pharmaceutical and food industries, compressed air is utilized for stirring
and conveying raw pharmaceuticals or food ingredients. Compressed air is
directly contacted with drugs or food, so the quality(oil content, bacterial
content, dust content) is highly demanded, requiring compliance with GMP or FDA
regulations. In the electronic or semiconductor industry, no oil air compressor
can be used for cleaning circuit boards or conveying electronic components.
Also, oil free air compressors can provide a pure air source for various
precised instruments.

Features of CMN No Oil Water Injected air compressor without oil
Whole machine is free of any lubricating oil, ensuring absolutely oil free
compressed air supply.
The operating temperature of the compressor is low, typically below 45 degrees
Celsius.
Low maintenance costs, requiring only the replacement of air and water filter.
Isothermal compression, high efficiency with direct coupling of the air end and
motor.
The air end rotates at a speed of only 3000 revolutions per minute, resulting
in low noise and vibration.

Why chose CMN no oil air compressor?
Life time Oil free Guaranteed
Stability---Stably compress your air for at least 10 years
Easy maintenance---No wearing parts design
If you need water injected screw compressor air solution, feel free to send us
an inquiry!

There are many oil free screw compressor manufacturers, but we are one of the
best choices for you.

Minimum Order: 1 sets
