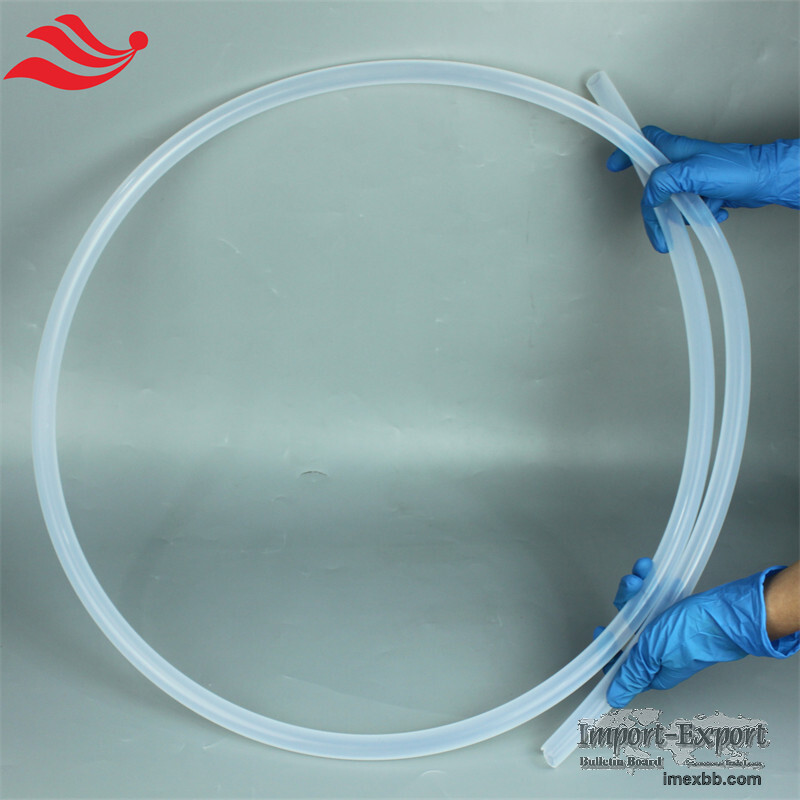

NJbinglab Ultra-clean PFA tubes, for semiconductor, no pollution

1. Product Guide
PFA transparent tubes are used to transport different liquids and gases, and
are resistant to strong acids and alkalis, high and low temperatures. Different
British tubes and capillaries can be processed. They are used in industries
with high cleanliness requirements such as the petroleum industry,
biopharmaceuticals, and the semiconductor industry. PFA tubes are used for
liquid and gas transportation during semiconductor manufacturing. In
semiconductor processes, many liquid and gas media need to be transported under
high temperature conditions while maintaining high purity and chemical
inertness. PFA tubes are ideal for transporting chemicals and solvents due to
their excellent high temperature resistance and inertness to chemical
corrosives, such as acid and alkali solutions, sputtering source materials,
photoresists, and deionized water.

2. Technical parameter description
Product name: PFA delivery pipe
Outer diameter * inner diameter (mm): 6*3, 6*4, 7*5, 12*10, British 1/4 inch
6.35*4.35, British 1/8 inch 3.17*1.58 Material: PFA
Temperature tolerance -200-260℃
3. Product characteristics:
1. High and low temperature resistance: The operating temperature can reach
-200~+260℃, and it can work at freezing temperature for a long time without
becoming brittle, and it will not melt at high temperature
2. High chemical stability can withstand All strong acids, including aqua
regia, hydrofluoric acid, concentrated hydrochloric acid, nitric acid, fuming
sulfuric acid, organic acids, etc., strong alkalis, strong oxidants, reducing
agents and various organic solvents, are used for the transportation of various
harsh fluids.
3. Low dissolution and precipitation, it is a good vessel for storing standard
substances, highly corrosive, expensive high-purity reagents.
4. Outstanding non-stickiness, excellent anti-stickiness, no colloids and
chemicals adhere to the inner wall of the tube, so no dirt layer will be formed
in the tube.
5. It can be used as a high-purity reagent delivery tube, such as for
chromatographs, chemical equipment, etc. supporting pipelines. Semiconductor,
liquid crystal manufacturing equipment, chemical plants and other liquid
pipelines.
6. Very good aging resistance and radiation resistance can be used outdoors for
a long time.
7. High softness and bending resistance.
Our factory can process in a directional manner.
