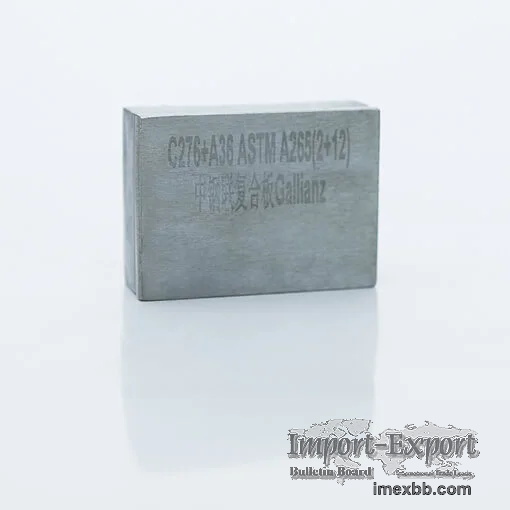

NICKEL AND NICKEL-BASE ALLOY-CLAD STEEL PLATE

Nickel (Ni) and nickel-base alloy-clad steel plate is a composite material made
by bonding a layer of nickel or nickel alloy to a layer of steel. And the base
steels are usually the carbon steel, low-alloy steel or stainless steel. This
results in a material that combines the strength and durability of steel with
the corrosion resistance and ductility of nickel. The manufacturing process for
nickel and nickel clad copper sheet typically involves the use of explosive
welding or hot rolling techniques. In explosive welding, the nickel and steel
layers are placed together and then subjected to a high-energy explosion that
fuses them together. Hot rolling involves heating the materials and then
rolling them together to create a uniform bond.

Features of Nickel and Nickel-base Alloy-clad Steel Plate
Wear resistance

Corrosion resistance

High temperature resistance

Highly ductility

High tensile strength

Applications of Nickel and Nickel-base Alloy-clad Steel Plate
The Nickel and nickel-base alloy clad steel plate is apply for various
industries, including Marine, Oil and Gas, Salt Equipment, Chemical Equipment,
Nuclear Industry. It is often used in the construction of tanks, pipelines and
other equipment that requires resistance to corrosion and durability. Nickel
materials are limited used in a certain extent because of its expensive, so
nickel and nickel-base alloy c276 clad plate will be a greater material at low
cost, but the heat treatment quality control plays an important role in
production processes. Proper heat treatment restores and improves the
mechanical properties of the base layer, and can ensure the corrosion
resistance of the cladding layer.

Applicable Materials Table of Nickel and Nickel-base Alloy-clad Steel Plate
The Nickel and nickel-base alloy clad steel plate shall apply for Industrial
Standards. The cladding material and the base metal in the table can be
combined freely according to different needs. Nickel and nickel-base alloy clad
steel plates should be manufactured in accordance with ASME SA265.
Product Name Nickel and Nickel-base Alloy-clad Steel Plate
Standard ASME SA265, NB/T 47002.2
Cladding Technique Explosive welding or Hot-rolling
Cladding Material Scope ASTM B168 N06600; ASTM B409 N08800, N08801; ASTM B421
N04400; ASTM B424 N08825; ASTM B443 N06625;
ASTM B575 N10276 (Hastelloy C-276)
Base Metal Scope (carbon or stainless steels) ASTM A36; ASME SA516 Gr60,
Gr60N,Gr65 GR65N, Gr70, Gr70N; ASME SA537 Gr1 Gr2 Gr3; ASME SA105 ASME SA350
LF1 LF2 LF3; ASME SA182 F1,11,12,21,22;ASME SA266 Gr1,Gr2,Gr3,Gr4 etc.
Cladding Thickness Around 1mm-15mm
Base Thickness Around 3-300mm
Clad Plate Total Width Around 3000mm or Customizable
Clad Plate Total Length Around 10000mm or Customizable
Surface Treatment Polished, blast cleaned, pickled and passivated as per
the applicable standard, or Negotiable.
Delivery Period 3-6 months or Negotiable
Package Export sea worthy package: waterproof papers+steel bands etc.
Payment T/T, L/C or Negotiable
Industrials Oil & Gas, Petroleum refining, Chemical industry, Aircraft and
Aerospace, Pharmaceutical Industry, FGD, Paper & Pulp etc.
Application Chimney, Pressure Vessel, Reactor, Tower, Chilling unit, Pre-
heater, Pump vessel, Heat-exchanger, Crystalizer, Digester, Hydrocracker,
Polymerizers, Shift Reactors.
Gallianz, as a China the Nickel and nickel-base alloy clad steel plates
professional manufacturer and supplier, is specialized in the development and
sale of different kinds of metal composite materials to meet your various
needs. Gallianz offers customers high quality clad plates, Gallianz can be your
reliable partner. Favorable price of nickel clad steel plate depends on
quantities, weight, production process, delivery method of the clad materials
in P.O.. Any special requirements about the nickel and nickel-base alloy clad
steel plate for sale, PLEASE feel free to message us!

If you want to know more about nickel clad steel price per kg, please visit our
website.

Minimum Order: 1 tons
