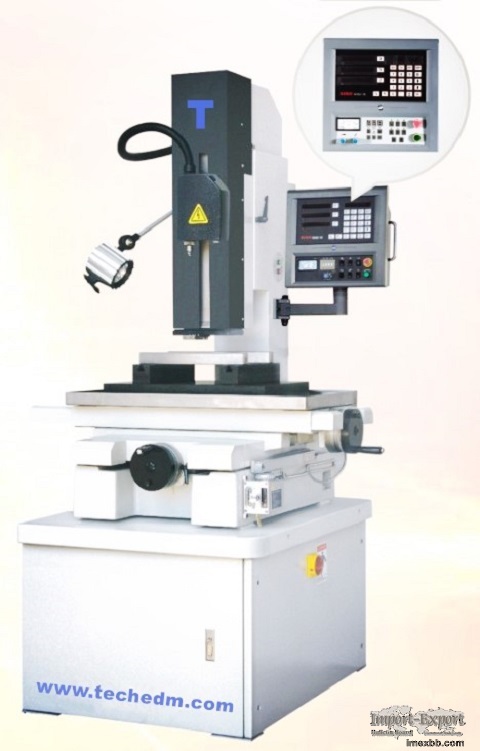

New Designed Drilling EDM machine

I. Specification



Model
TD703AD

1

Worktable Dimension

550×360㎜

2

Travels X×Y×Z

350×250×（380+300）㎜

3

Max Load on Work Table

350kg

4

Max Pressure of Working Water

14Mpa

5

Flume dimension

800*450mm

6

Max Work Current

30A

7

Electrode Diameter

Ф0.15-Ф3mm

8

Max Process Deep

400mm

9

Max Processing Speed

30-60mm(Ф1.0)

10

Max Diameter to Deep Ratio

≥300

11

Workpiece Material


Steel/Aluminum/Copper/Carbide and Various of Conductors

12

Working Medium

Tap water/Ion free water

13

Machine Exernal Dimensions

1000×750×2000mm

14

Machine Weight

950kg



II. The machine characteristics:


1. Process deep holes of diameter from Ф0.15-Ф3mm rapidly

2. Servo control system realizes speedy motion.

3. High accuracy movement by linear roller guides of Z axis.

4. X,Y,Z three axes adopt high accuracy ball screws for fast and agile
movement.

5. X,Y axes base high precision V-shape and Flat rails with Teflon
protection for high stiffness and wide travel.

6. Three axes DRO with linear scales, auto depth control helps blind holes
process.

7. Water and dust proved panel in touching .

8. Smart Drill interface and digital frequency generator.

9. Special pump made in Taiwan.

10. Max process depth ≥400mm.

11. One touch, one hole made.

12. Rotating device sealed in plane structure by anti-rust material.

(The main difference between TD703A and TD703AD is the operation panel. ON
TD703AD, it is stainless steel panel, having a longer usage life).

Minimum Order: 2 sets
