Network Cyber Security Appliance with intel J6413 cpu 8 LAN and 2 NMC slots

1u rackmount Network/cyber security Appliance with intel J6413 cpu and 2 NMC
slots

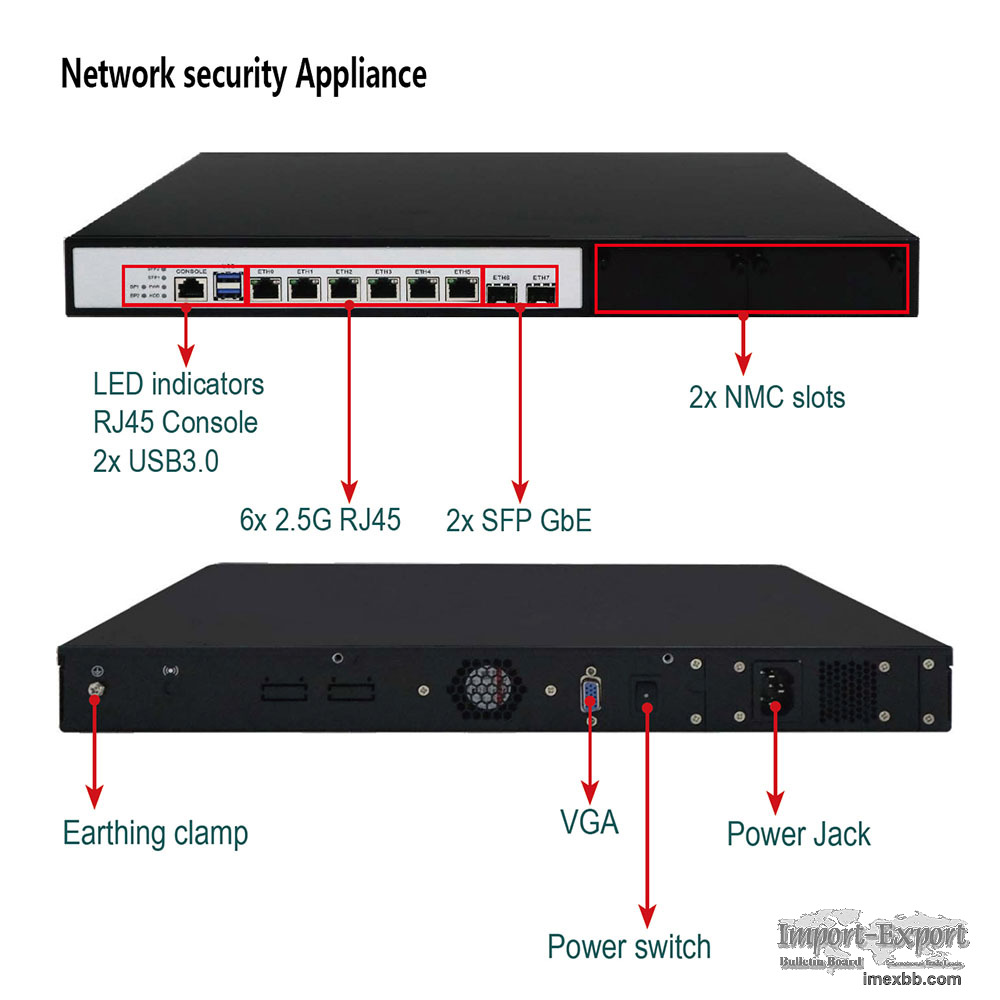

F64817 is a 1U rackmount network security Appliance, its motherboard with
Intel® J6413 CPU, 6x 2.5G networking ports, 2x 1g SFP LAN, 2 NMC slots support
NIC modules extension with more RJ45/SFP Gbe, one SATA and one mSATA interface,
CF slots, supports single or redundant power supply. its ideally to use into
projects and applicaiton on network and cyber security including Unified Threat
Management, IPS, IDP, SSL VPN, Load Balancing, Bandwidth Manager, Firewall,
Bandwidth Management, Gateway security, WAN acceleration, Network Access
Control, Web Filter, AntiVirus Wall, Core Switch, Server Load Balancing, Anti-
Spam.

Motherboard
CPU Intel Socket LGA 1200/ H5, I7 I9 Xeon W1200 W1300 CPU

Chipset Intel W580

System memory Four DDR4 slots, up to 128GB

Storage
Interface Two SATA3.0 connectors, one mSATA and one M.2 slot

Hard Drive Supports one 3.5/2.5" HDD tray

Ethernet
LAN Port Two 2.5G RJ-45 ports

Ethernet Chip Intel® Ethernet Controller I225-V

Extension ports Max 32 ports, extending by NMC slots

Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS
function LED

System I/O
USB Two USB3.0

COM One RJ-45 COM

Indicator One Power LED, one HDD LED

Video Built-in one VGA interface, support hot plug(Internal)

NMC slots Four NMC slots for extension NIC

Expansion PCIEx8 slots

Power supply
Power consumption 250W power supply

Power input 100 ~ 240V AC input

Optional DC power or Redundant power

Environmental
Mounting Supports rack-mounting or desktop-mounting

Operate Temperature -10°C ~ 50°C

Storage Temperature -20°C ~ 75°C

Operate Humidity 5% ~ 85% non-condensing @ 40°C

Storage Humidity 5% ~ 95% non-condensing

Minimum Order: 1 pieces

Click to Enlarge
