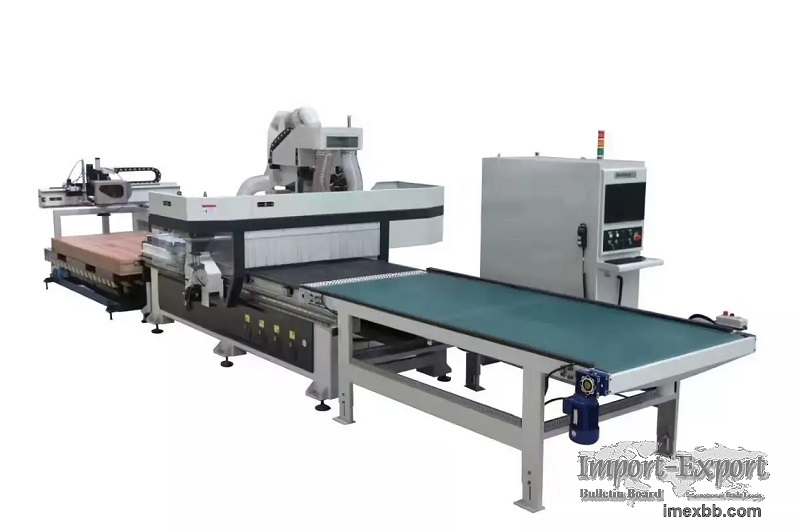

Nesting ATC CNC Router ST1325N

CNC Router Machine Features：
Highly automated nesting solution with automatic loading and unloading system.
The complete work cycle of loading, nesting, drilling and unloading is carried
out automatically, which results in maximum productivity and zero down time.
World’s first class components--Italian high-frequency electric spindle,
controller system and drill bank, German helical rack and pinion drives,
Japanese self-lubricating and dust-proof square linear guides and high
precision planetary gear reducers, etc.
Truly versatile--nesting, routeing, vertical drilling and engraving all in
one.  It is well-suited for panel furniture, office furniture, cabinets
production.
CNC Router Application:
Wooden door, cabinet, panel furniture, closet, etc. Suitable for standard or
bespoke production.
Technical Parameters
Model ST1325N
Traveling Size 1300*2500*200mm
Transmission X/Y rack and pinion drive, Z ball screw dr , ive
Traveling Speed ≥45000mm/min
Working Speed ≥25000mm/min
Spindle Power HSD 9 kw ATC spindle
Spindle Speed 24000r/min
Driving System Yaskawa
Controller Syntec
