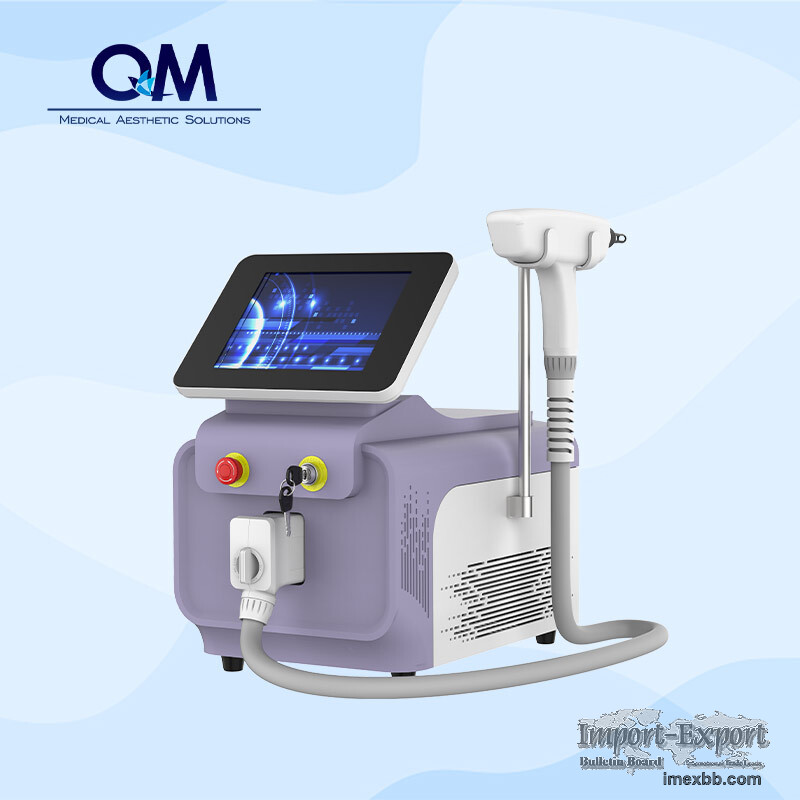

Nd Yag Laser System

Pico Touch Screen Portable Professional Q switched Nd Yag Laser Professional
Blackhead Cleaning Tattoo Removal Machine
Applications:
• 532nm wavelength: get rid of freckles, eyebrow tattoo, failed eye line
tattoo, tattoo , lips line, pigment, telangiectasia in shallow red, brown and
pink and etc. light color

• 1064nm wavelength: get rid of freckles and yellow brown spot, eyebrow
tattoo, failed eye line tattoo, tattoo, Birthmark and Nevus of Ota,
pigmentation and age spot, nevus in black and blue, scarlet red, deep coffee
and etc. deep color.

• 1320nm wavelength: shrink pores removal, poblackhead removal, skin
tightening and whitening, skin rejuvenation, wrinkle removal .
Working Principle:

The special wavelength of YAG laser can penetrate skin of human body according
to the theory and practice of "selective laser decomposing", the instrument
uses the laser-wave to break Chromatophore into pieces which can be naturally
absorbed by the body. So that it achieves the purpose of de-freckling.
The Q-switched Nd:YAG laser radiates the light with a specific wavelength in
high peak energy pulse; hence the light penetrates the tissue only for an
ultra-short nanosecond. The light is absorbed by the pigment tissue and results
in an instantaneous blast, that is Light blasting principle. The pigment
particles are shattered into fragments, parts of them will be bounced out of
the skin and other parts will be split into tiny particles that can be engulfed
by phagocytes and then metabolized by the lymphatic system.
The 1064nm wavelength will shatters and removes the black and blue pigments
while the 532nm wavelength will shatters and removes red, pink, purple and
brown pigments of the tattoo or other pigmentations without damaging the normal
tissue

Specialty of QM-Q1
• New Medical and Elegant design
• Ergonomic design handle, super long lifespan which can reach 2 millions
shots !
• 2. 3 Laser tips: 532nm, 1064nm, 1320nm can meet different pigments and
black doll treatments
Non-pain tips are for option




Technical Specifications:

Peak Power 500W
Wavelength (Spectrum) 1064nm & 532nm (1320nm optional)
Energy Density (Fluence) 1-2000mJ
Spot Size 2-7mm
Pulse Repetition Rate 1-10Hz
Pulse Duration <8ns
YAG Bar Size ¢7
Cooling Air cooling
Closed water circulation cooling
Stand-by Working Continuously for 15 hours
Display 8.4" True Color LCD Touch Screen
Electrical Requirements 110/230VAC, 15/20A max., 50/60Hz
Net Weight 25kgs
Dimensions (WxDxH) 480*430*340 mm

Minimum Order: 1 sets
