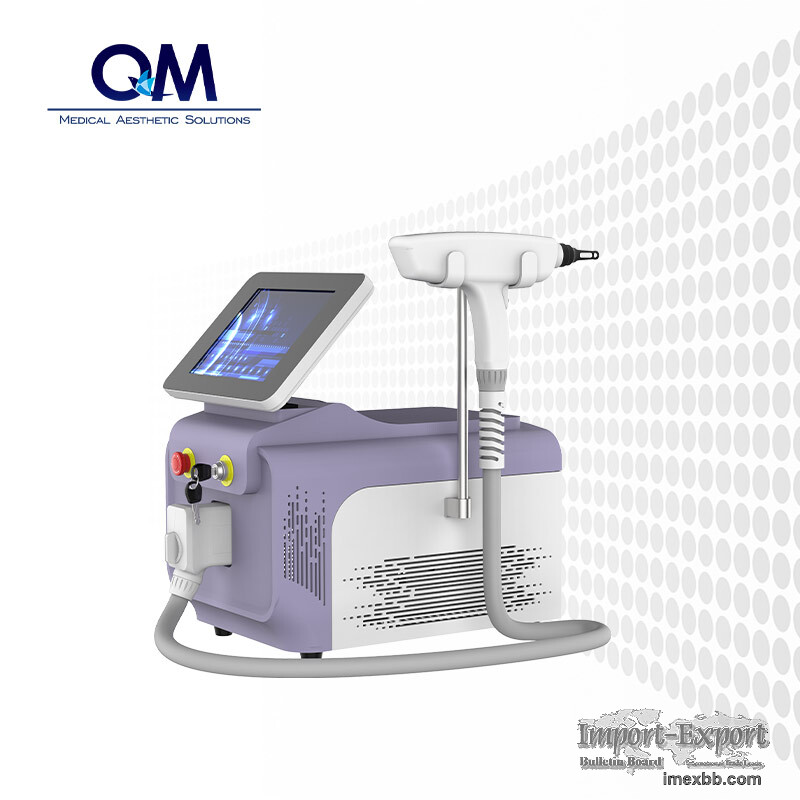

Nd Yag Laser System

Pico Touch Screen Portable Professional Q switched Nd Yag Laser Professional
Blackhead Cleaning Tattoo Removal Machine


Applications:

•532nm wavelength: get rid of freckles, eyebrow tattoo, failed eye line tattoo,
tattoo , lips line, pigment, telangiectasia in shallow red, brown and pink and
etc. light color

•1064nm wavelength: get rid of freckles and yellow brown spot, eyebrow tattoo,
failed eye line tattoo, tattoo, Birthmark and Nevus of Ota, pigmentation and
age
spot, nevus in black and blue, scarlet red, deep coffee and etc. deep color.

•1320nm wavelength: shrink pores removal, poblackhead removal, skin tightening
and whitening, skin rejuvenation, wrinkle removal.


Working Principle:

The special wavelength of YAG laser can penetrate skin of human body according
to
the theory and practice of "selective laser decomposing", the instrument uses
the
laser-wave to break Chromatophore into pieces which can be naturally absorbed
by
the body. So that it achieves the purpose of de-freckling.
The Q-switched Nd:YAG laser radiates the light with a specific wavelength in
high
peak energy pulse; hence the light penetrates the tissue only for an ultra-
short
nanosecond. The light is absorbed by the pigment tissue and results in an
instantaneous blast, that is Light blasting principle. The pigment particles
are
shattered into fragments, parts of them will be bounced out of the skin and
other
parts will be split into tiny particles that can be engulfed by phagocytes and
then metabolized by the lymphatic system.
The 1064nm wavelength will shatters and removes the black and blue pigments
while
the 532nm wavelength will shatters and removes red, pink, purple and brown
pigments of the tattoo or other pigmentations without damaging the normal
tissuE


Specialty of QM-Q1
•New Medical and Elegant design Ergonomic design handle, super long lifespan
which can reach 2 millions shots !

Laser tips:
532nm, 1064nm, 1320nm can meet different pigments and black doll
treatments.Non-
pain tips are for option

Technical Specifications:

Peak Power 500W
Wavelength (Spectrum) 1064nm & 532nm (1320nm optional)
Energy Density (Fluence) 1-2000mJ
Spot Size 2-7mm
Pulse Repetition Rate 1-10Hz
Pulse Duration <8ns
YAG Bar Size ¢7
Cooling Air cooling
Closed water circulation cooling
Stand-by Working Continuously for 15 hours
Display 8.4" True Color LCD Touch Screen
Electrical Requirements 110/230VAC, 15/20A max., 50/60Hz
Net Weight 25kgs
Dimensions (WxDxH) 480*430*340 mm

Minimum Order: 1 sets
