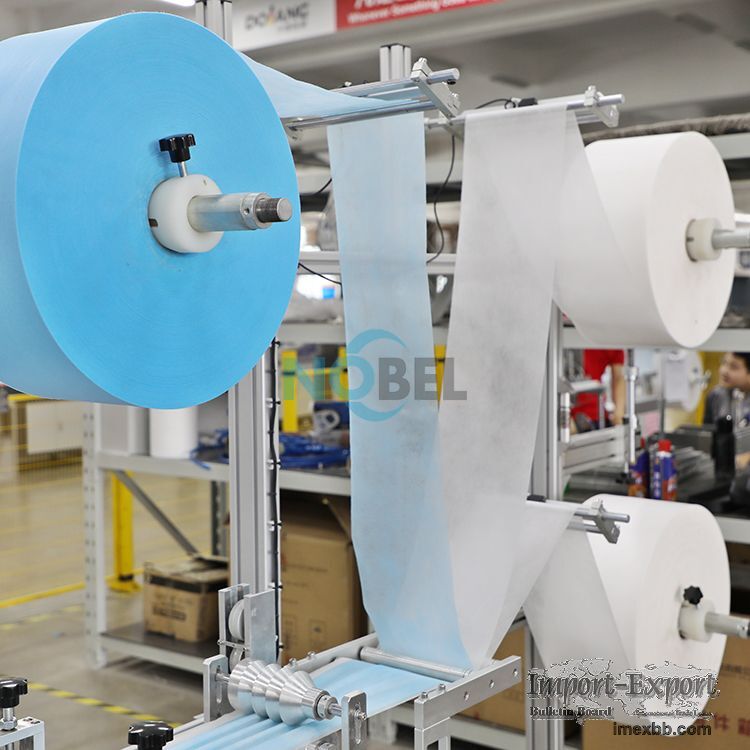

NBL-9600 High-speed Fully Automatic Flat Face Mask Production Line

NBL-9600 High-speed Fully Automatic Flat Face Mask Production Line (1+2)
medical mask production line distributor

Nobel High-speed face mask machine Technical Parameters
Machine size: 7000 * 3700 * 2100mm.
Machine capacity: 120-160 pieces / minute
Machine yield: 99%
Machine power: about 10.5KW
Voltage: 220VAC 50 / 60Hz (please specify voltage requirements when ordering)
Air pressure: ≥0.6MPa

automatic Mask Blank Making Machine Advantage
1. The laminating machine adopts the insert folding device, and the adjustment
is simple and quick.
2. Large diameter welding wheel is adopted to effectively reduce product
deformation.
3. Adopt aluminum alloy frame, firm and beautiful, ensure the size of the
finished product is accurate.
4. Adopt stainless steel clamp, can adjust left and right.
5. The tension wheel can be set to adjust the fabric tension, so as to
effectively ensure the beauty and flatness of the finished product.
6. It adopts independent nose line conveying group, which is convenient for
adjustment and maintenance.
7. The first-line well-known brand ultrasonic transducer, 20K international
frequency standard, the output is more powerful and stable; plus two sets of
ultrasonic system, effectively ensure the welding quality of products.
8.PLC is used to control the whole machine automatically to reduce the
operation difficulty of user.

Parts Brand
Code  Items  Required brands
1 Bearing  NSK、SAMICK,LYC，HRB，THK
2 relay OMRON
3 Button  Yijia
4 Cylinder + solenoid valve + triplex SMC、Airdac、
Air Liquide/Taiwan, other do , mestic brands of the same quality
5 Servo system  Xinje
6 Touch screen  Xinje
7 PLC Xinje


This mask making machine have been following German Industrial DIN standard,
IEC international electrical standard, SGS global quality and integrity
standard

For more information or news about the face mask making machine,please click
here.

https://www.nobelindustrial.com/p , roduct-face-mask-machine-manufacturer.html

Minimum Order: 1 sets
