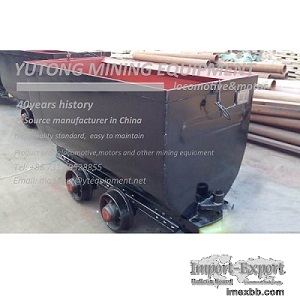

Narrow Gauge Underground Mining Wagons

Narrow Gauge Underground Mining Wagons Manufacturer Supplies Price
Application, characteristics and working environment of bucket-tipping mine car
The bucket-tipping mine car is a narrow-gauge railway transportation vehicle
for transporting coal, ore, ballast and other bulk materials in the mine.
Generally, it must be tract by a locomotive or a winch.
According to different structures and unloading methods, they are divided into
four categories: bucket-tipping mine car, fixed mine car, single-side curved
rail dumping mine car, and bottom-dumping mine car.



The main features of the bucket-tipping mine car:
The bucket-tipping mine car does not need any auxiliary facilities, can
automatically flip left and right, is flexible and light.
The frame is a metal structure, which can withstand the traction force,
ultromotivity, collision force between mine cars, and rail impact force;
This type of mine car has the advantages of firm structure, beautiful
appearance, reliable performance, flexible and stable operation, etc.
The frame of the mine car adopts a riveted welding structure, which reduces the
influence of gravity on the mine car and increases the service life of the mine
car.
The mine car is guaranteed to run smoothly whether in a bend or a straight.
This series of mining wagon are widely used for underground and surface coal
transportation in coal mines,iron ore, phosphate mines, etc., It is
commonly used transportation equipment such as coal mines.
K........Represents the mining vehicle
F........Represents bucket-tipping mine car
V/U........Represents the shape of the car box, V-shaped or U-shaped
0.75/1.0........Represents the volume of the car
-6.......Represents the gauge used by the car
Technical performance table of bucket-tipping mine car
Volume Nominal loading
Maximum loading Gauge Dimensions Wheel base Wheel diameter Haule
height Traction Minimum plane operating radius Body weight
Unloading angle
Length
Width
High
m³ kg kg G mm L mm B mm H mm C mm D mm
h mm kN m kg °
KFU0.75-6 0.75 1800 1800 600 1700 980 1250 600
300 320 60 9 ≤740 ≥40°
KFU1.0-6 1 2000 2500 600 1970 1070 1250 600
300 320 60 9 ≤680 ≥40°
Installation and trial operation of bucket-tipping mine car
Locking mechanism test
Place the mine wagon car on a horizontal track, and open the left and right
closing mechanism by manpower many times. The locking mechanism should be
simple, reliable, safe, flexible and convenient in operation.
Braking mechanism test
Place the mine car on a horizontal track and run at a constant speed of 1.5-
3.5m/s. When braking, check the reliability of the mechanism. The components of
the mechanism should be firmly connected and braked reliably. When the force
leaves the brake pedal The brake shoe should leave the wheel tread in time.
Wheel set test
The friction wheel or belt is driven by an electric motor, and the wheel is
driven to run at a speed of not less than 500r/min for 10 minutes. The wheel
rotates flexibly and the resistance torque is not more than 1370N.mm.
Locking mechanism test
When turning without load, the cart can be turned flexibly, and the unloading
angle is ≥40°; after the locking mechanism is opened manually, the mine car
can be easily and flexibly tipped to either side of its longitudinal
centerline.
Buffer spring performance test
When metal springs are used, the compression performance test shall be carried
out in accordance with the provisions of GB/T1239.4; when rubber springs are
used, the compression performance test shall be carried out in accordance with
the provisions of GB/T1684.
Attention during trial, maintenance and operation of bucket-tipping mine car
1.Before using the mine car, carefully check the appearance for any serious
bumps and damage, and the wheels should rotate flexibly without jamming.
2.In the case that the user abides by the rules for the use of mine car, within
six months from the date of delivery, if it is damaged or cannot work normally
due to poor manufacturing quality, the manufacturer shall repair or replace it
free of charge.
Attention during trial, maintenance and operation of bucket-tipping mine car
1.Before using the mine car, carefully check the appearance for any serious
bumps and damage, and the wheels should rotate flexibly without jamming.
2.In the case that the user abides by the rules for the use of mine car, within
six months from the date of delivery, if it is damaged or cannot work normally
due to poor manufacturing quality, the manufacturer shall repair or replace it
free of charge.

FAQ
What's your product advantages?

We have more 40 years experience in this field so that we could design or
produce the locomotive as your requirement. We could also provide online
service to teach you how to operate and maintain the locomotive.
The most important thing that we produce the main part of the locomotive- The
traction motors. we could guarantee the power of the locomotive.

1.Pre-sales Service:
The wide product range enables us to provide our customers with individual
machines or complete processing plants. Based on our customer's request and
budget, our experts make efficient and reliable solutions, and we produce
strictly follow customers' order. What's more, every customer has the chance to
visit the working machine in the site before placing the order.

2.After-sales Service:
Experienced technicians guidance is available on the phone, and on the
internet. One or more engineers will be dispatched to the quarry site to help
install the customer's plants.Necessary training about machine daily
maintenance to local workers is provided also.

3.Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
Handling time for an order:
Within 10 days supplied from stock

4.Shipping method:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.

5.Quality Control:
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping
out.

6.After Services:
a. Our sales team will response for your question within 24 hours (Holiday is
Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our
product quality

Minimum Order: 1 pieces
