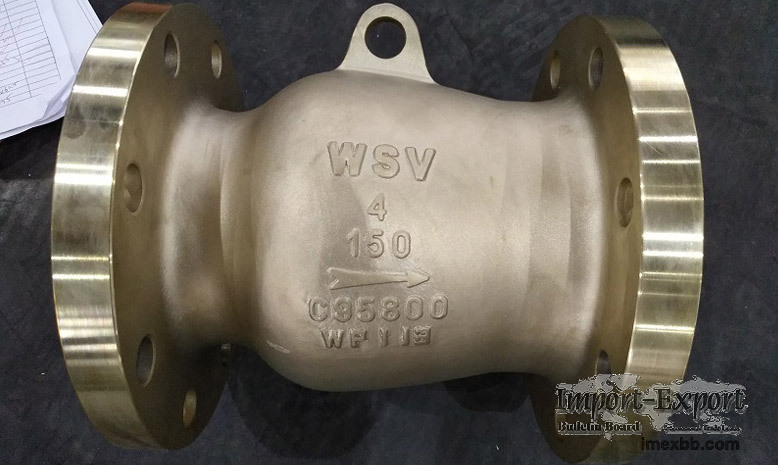

NAB C95800 Check Valves

Weidouli offers a comprehensive range of NAB C95800 check valve for all types
of applications and industries, including the nozzle check valve, NAB C95800
dual plate check valve, NAB C95800 Swing check valve, NAB C95800single plate
check valve, NAB C95800 lift type check valve.

Material Definition Of Nab C95800 Check Valves

Nickel Aluminium Bronze is Copper alloy based material with the addition of

Aluminium(Al)

Iron (Fe)

Nickel (Ni)

Manganese

These materials are also known as Aluminium Bronze or NAB

Material Feature Of Nab C95800 Check Valves

Nickel aluminum bronzes are available in both cast and wrought product forms
and have a unique combination of properties:

Excellent wear and galling resistance

High strength

Density (10% lighter than steel)

Non-sparking

Low magnetic permeability (of＜1.03μ in selected grades)

High corrosion resistance

Good stress corrosion properties

Good cryogenic properties

High resistance to cavitation

Damping capacity twice that of steel

High resistance to bio-fouling

A protective oxide surface film that has the ability to self-repair.

Weidouli Nab C95800 Check Valves type Nozzle check valve

The Contoured body-disc diffuser arrangement assures venturi flow
characteristics ensuring mininal pressure drop and streamlined flow;

Eyebolt hook design upon size ≥4", easy for on-site installation;

Spring return design live-load;

Providing optimum pressure recovery performance and minimum pressure lost and
fluid turbulence;

Integral metal seat applicable for high temp application;

Retainer-less design for pin and disc connection;

Suitable for all installation positioners;

Reduce bearing load with long-lasting usage of disc and diffuser;

Streamlined body design with low flow resistance.

Other types: Swing check valve, Dual plate check, Single plate check valve,
Lift type check valve,

Application: Seawater system.

Weidouli Valves Co., Ltd., is a professional industrial valves manufacturers,
we provide brass inline check valve, manual valve, etc. Contact us to know
brass check valve price or brass non return valve price list.

Minimum Order: 1 pieces
