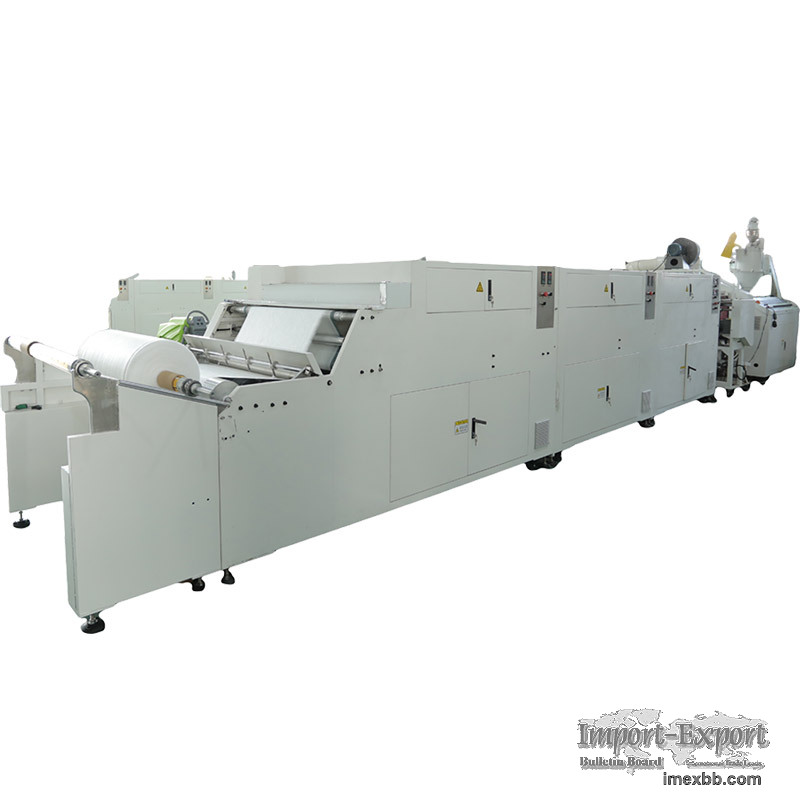

N95 N99 Standard Full Automatical 880mm Melt Blown Fabric Producion Line

N95 N99 Standard Full Automatical 880mm Online Water Electret Melt Blown Fabric
Producion Line V.0
Product Details:
The PP meltblown nonwoven production line is a polymer melt extruded from a
screw extruder. The polymer is extremely stretched by high-speed hot air or
other means to form very fine short fibers, which are aggregated to A web is
formed on a roller or a screen curtain, and is finally reinforced by self-
adhesion or thermal bonding. Its unique properties are widely used in mask
filter materials, thermal insulation filling materials, medical health
materials, wiping materials, etc.

Applications of Tongwei Meltblown Fabric
● Medical supplies
surgical masks, disposable surgical drapes, surgical drapes, shoe covers, etc.
● Sanitary materials
Baby diapers, adult incontinence pads, women's sanitary napkins, other cleaning
applications, etc.
● Packaging supplies
Shopping bags, rice bags, tea bags, clothing packaging, etc.
● Household products
Spring cloth, bedding, seat products, etc
● Sanitary materials
Baby diapers, adult incontinence pads, etc.
● Technical engineering
Civil engineering, construction engineering, agricultural field, automobile
field, etc.

Technical Parameters:
Model No. MY-880
Total Power 260kw
Power Supply 380VAC
Width of Nozzle 820mm
Mechanical Line Speed 4-20m/min
GSM Range 20-80g/m²
Workers Needed 20-80g/m²
Production Capacity 500-800kg/day
Water Consumption 500kg/h
Total Weight 2500kg
Total Size 12m*2m*2.8m

Components:
①　Meltblown Host
②　Electronic Control System
③　Roots Blower
④　Filter
⑤　Metering Pump
⑥　Spinneret
⑦　Meltblown Die
⑧　Suction Fan
⑨　Pure Water System
⑩　Vacuum Pump
⑪　Web Former
⑫　Drier
⑬　Slitter-rewinder
