N510M

As a 3G/4G/5G module, N510M supports a wide range of frequency bands and has
excellent RF performance. It supports sub-6 GHz 5G spectrum and supports both
standalone (SA) and non-standalone (NSA) network deployment. N510M integrates
various network protocols and provides industry-standard interfaces. It
supports high-speed interfaces, such as PCIe and USB3.1, to meet the
requirements for ultrahigh speed data transmission in the eMBB scenario. N510M
supports drivers for Windows 7/8/8.1/10, Linux, and Android, and facilitates
application development. The N510M series can be used in China, Europe,
Southeast Asia, and most other regions where 5G networks are deployed. Even in
areas without 5G, N510M can work on 4G and 3G networks.

Product Features
M.2 package
SA/NSA
SeLinux/Secure boot

Specifications
Supply Voltage 3.1 V to 4.4 V, TYP.: 3.3 V
Dimensions 52.0 mm x 30.0 mm x 3.8 mm
Package M.2
Operating temperature -20℃ to 70℃
Interface PCIe Gen 2
USB 2.0 / 3.1
I2S
UART
USIM (1.8 V / 3.0 V)
Frequency Bands 5G NR: n1/n28/n41/n77/n78/n79
LTE FDD: B1/B3/B5/B7/B8
LTE TDD: B34/B38/B39/B40/B41
UMTS: B1/B2/B5/B8
Protocol PPP/RNDIS/TCP/UDP/FTP/HTTP/HTTPS/NTP/IPv4/IPv6
, Region China / SEA

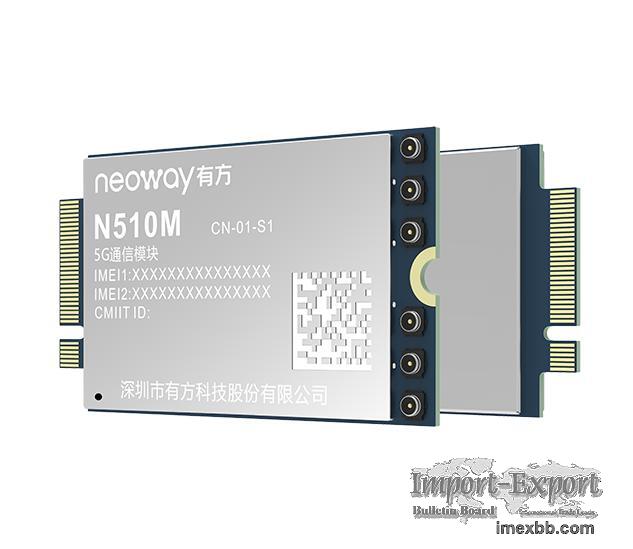

N510M
