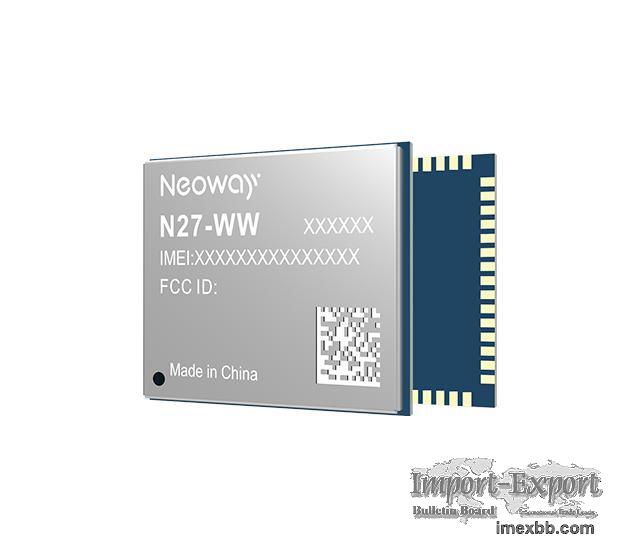

N27

N27 is an NB IoT module specially designed for M2M and IoT applications.
Adopting the 3GPP Rel.14 LTE technology, it delivers 1119 kbps downlink and 588
kbps uplink data rates. N27 supports location technology Gen9 VT (GPS, GLONASS,
BDS, Galileo, and QZSS). The integrated GNSS greatly simplifies product design,
and provides faster, more accurate and more reliable positioning functions. N27
integrates industrial UART interfaces and supports various network protocols,
such as CoAP, UDP, TCP, and MQTT. N27 has excellent RF performance, low power
consumption, and an ultra-wide operating temperature range. With various
industry-standard interfaces and abundant functions (USB serial drivers for
Windows 7/8/8.1/10, Linux, and Android), this module is an optimal option for
energy metering, telematics, smart city, tracking, and environmental
monitoring, and other scenarios.

Product Features
Open ThreadX
Cat.M1/Cat.NB2/GPRS
CLASS 3/5
GNSS
-40℃ to +85℃

Specifications
Supply voltage 3.1V to 4.3V, Typ.:3.6V
Dimensions 24.0 mm x 18.0 mm x 2.3 mm
Package 76-pin LGA
Storage Optional (ROM: 512Mb or 1Gb; RAM:256Mb)
Interface PCM/I2S
ADC*2
I2C*1 (Open)
SPI*1 (Open)
UART*2
USB2.0
PWRKEY_N
WAKEUP_IN
WAKEUP_OUT
NET_LIGHT
USIM(1.8V)
LCD(EBI2)
GNSS GPS/BDS/GLONASS/GALILEO/QZSS (Optional）
Frequency bands -W3:
eMTC: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/ , B28/B66/B85

-WW:
NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/ , B71/B66/B85
eMTC: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/ , B28/B66/B85

-W1:
NB-IoT:
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/ , B28/B31/B66/B72/B73/B85
eMTC:
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/ , B27/B28/B31/B66/B72/B73/B85
Protocol CoAP/UDP/LWM2M/MQTT/TCP/DTLS/DNS/FTP/HTTP(s)
ES , D VBAT: ±8kV/±15kV
GND: ±8kV/±15kV
ANT:±8kV/±15kV
Other: ±2kV/±4kV
Region Global
