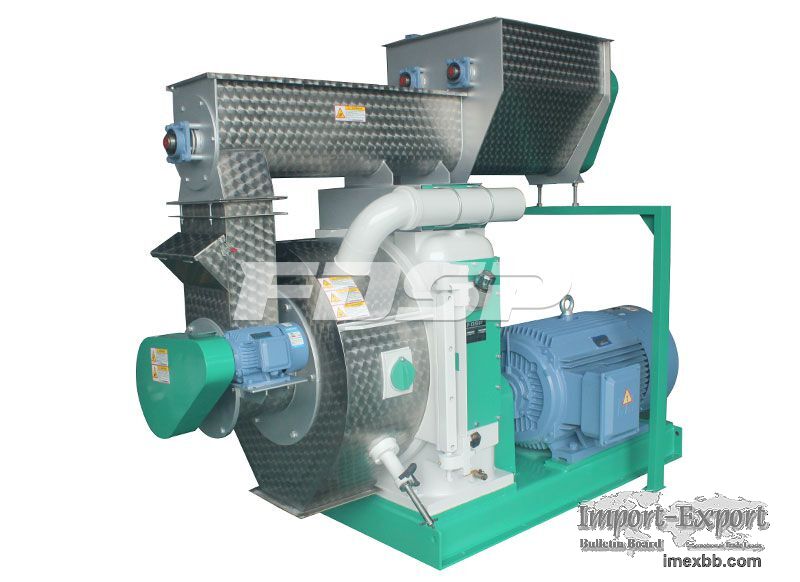

MZLH508/680 FDSP Biomass Pellet Machine

MZLH508/680 FDSP Biomass Pellet Machine
MZLH series pellet mill can process all kinds of biomass pellets; (such as:
sawdust, wood logs, wood chips, waste wood, branches, straw, wheat stalk, rice
husk, cotton stalk, sunflower stalk, olive slag, grassy, bamboo, bagasse,
paper, peanut shell, corn cob, soybean rod, weed granulation, etc.)
Biomass Pellet Mill Features
The main drive adopts high-precision gear rotation, the efficiency is increased
by about 15% compared with the belt drive type, and the ring die adopts the
quick release hoop type;
The high-quality imported bearings and oil seals are used in the transmission
part of the whole machine to ensure high efficiency, stability and low noise.
The international advanced level compensation type serpentine spring coupling
has the characteristics of novel structure, compactness, safety and low
failure.
Strengthen the working strength of the main working parts from the materials,
heat treatment and other processes to achieve the granulation requirements of
biomass particles;
Brand name: FDSP
There are a number of innovative designs on the ring die, which mainly improve
the problems of ring mold anti-cracking, increased production output, and
increased total output;
Our website: https://www.fdsp-cp.com/pellet-mill/
Add non-stop refueling system, add air-cooling system, high efficiency, low
energy consumption, stable operation, stable and reliable granulation quality;
Configure overload protection device to improve equipment life;
The door cover is made of stainless steel for durability.
Model   Parameter     MZLH420          MZLH508-L MZLH680
Ring die inner   diameter (mm) 420 500 688
Ring die working width(mm) 90 100 110
Ring die linear   speed (m/s) 3.16 3.78 3.54
Number of clamp 3 pcs 3 pcs 8 pcs
Number of roller 2 pcs 2 pcs 2 pcs
Number of cutter 1 pcs 1 pcs 1 pcs
Motor power 90+2.2+0.75 90+2.2+1.5 185+3.0+1.5
Motor rotation speed 750 750 595
Ring die hole   diameter(mm) 6/8/10 6/8/10 6/8/10
Ring die materials：4Cr13
Stainless steel feeder：With broken arch function
Door cover of granulating chamber：-6/SUS304
Forced feeding: worm gearing reducer
Gearbox Casing：HT250
Wheel gear：42CrMo
FDSP biomass pelletizer Gear shaft：20CrMnMo
Main shaft：40Cr
Hollow shaft：forge piece 45#
Bearing：gear shaft, main shaft bearing is NSK, roller bearing is domestic high
quality bearings
Oil seal：Germany/Taiwan
Overload mechanical protection：safety pin
Serpentine spring coupling drive
Lubrication system： Automatic oil filling system is available
Morot: Siemens (China) motor or Wannan motor

Minimum Order: 1 sets
