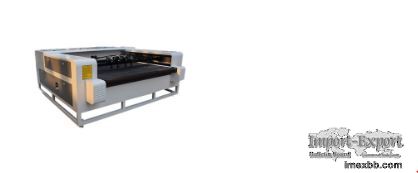

Mutual Movable 4 Heads Laser Engraving Cutting Machine 80W 100W For Nylon R

mutual movable 4 heads laser engraving cutting machine for nylon Rug Mat Carpet
Features of mutual movable 4 heads laser engraving cutting machine :

1. The 4 heads mutual movable with high efficiency and effectiveness work
simultaneously.



2. The auto-feeding function is specially designed for piece goods, such as
cloth, fabric,Towel, leather, jeans, knit article, embroidery, etc.



3. This machine is specially designed for middle and large size fabric and
textile cutting works, it adopts auto feeding systems, largely improved the
working efficiency.



Applicable materials

Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper,
leather, rubber, ceramic, glass and other nonmetal materials.

Applicable industries
Advertisement, arts and crafts, leather, toys, garments, model, building
upholster, computerized embroidery and clipping,
packaging and paper industry.
Technical parameter
Model
mutual movable 4 heads laser engraving cutting machine
Working area
1600*2600/1600*1000/1800*1000/1800*1300mm< , br>Laser type
sealed co2 glass laser tube
Laser power
80W/100W/130W/150W/160W/180W/300W (Optional)
Engraving speed
0-800mm/s
Cutting speed
0-400mm/s
Cutting thickness
0-20mm ( depends on materials)
Resolution rate
±0.05mm
Data transfer interface
USB2.0
Working voltage
220v±10% 50hz 110v±10%60hz
Min shaping character
Character:2*2mm letter:1*1mm
Software
RdworksV8/ CorelDraw/AutoCAD
Working table
stainless steel net + auto-feeding working table
Supported graphic formats
BMP PCX TGA TIF PLT CDR
Working temperature
0-45°C
Working humidity
5%-90%
Rsolution ratio
<4500DPI
Applicable materials
Fabric, leather etc Fexible material
Package
Packing in export wooden cases
The above parameters are la boratory test results, subject to actual operating
conditions.
