Multiport Selector Valve

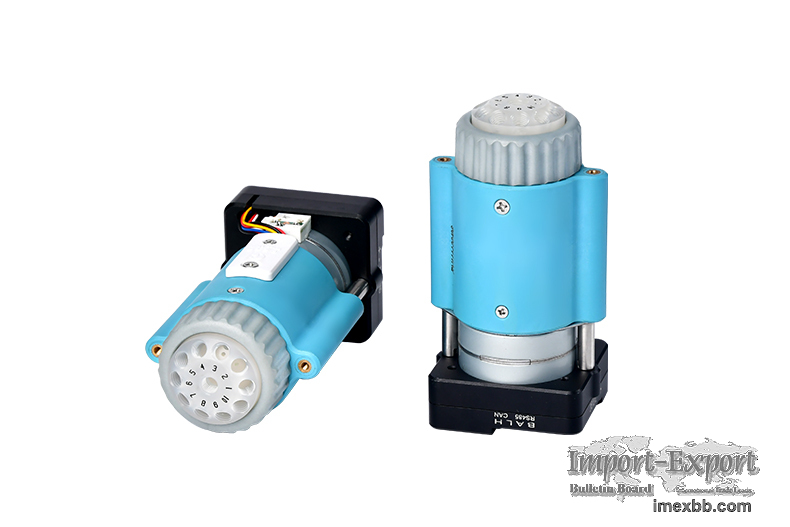

Smart SV-04 multiport selector valve was equipped RUNZE patented sapphire valve
spools with high hardness so as to anti-wear resistance to extend the service
life, it is also biocompatible, corrosion resisting and temperature resisting,
small footprint and maintenance-free systems make it widely accepted in a small
compact instrument.
Flow Configuration of Multiport Selector Valve

Multiport Selector Valve

Wetted material - PCTFE valve head and sapphire valve spool to create a fluid
path of non-metal, anti-corrosion, anti-high temperature and wear resistance

Reset position - SV06 valve reset by CCW (non-changeable), rotor stay between
port 1 and maximum port, public port disconnected with any port when valve at
reset position

Specification of Multiport Selector Valve
Orifice 1.2mm
Wetted material PCTFE, Sapphire
Port configuration 6/8/10 port
Dead volume 5.4μL
Air pressure 0-0.5Mpa
Water pressure 0-0.6Mpa
Origin detection Auto-reset to reset position when powered on (optional
and settable)
Liquid temperature 0-150℃
Connection 1/4-28UNF
Replaceable parts Stator replaceable, sealed rotor irreplaceable
Transposition Random start to any specific port
Driver Non-optional
Switch speed ≤4s/r
Max. torque 4N/m
Communication RS232, RS485, CAN
Baud rate RS232/RS485: 9600bps, 9200dps, 38400dps, 57600dps, 115200dps
CAN: 100Kbps, 200Kbps, 500Kbps, 1Mbps
Address & Parameter setup Communication interface
Power supply DC24V/1.0A
Max power 24W
Operating temperature 0℃ to 50℃
Operating humidity <80% relative humidity, non-condensing
Dimension (L*W*H) 63.7*50.4*115.1mm
Net weight 0.437KG

Driver Port of Multiport Selector Valve



Port Description
+ DC24V positive
- DC24V negative
TX RS232 data input
RX RS232 data output
GND GND
H CANH
L CANL
A RS485 A
B RS485 B
