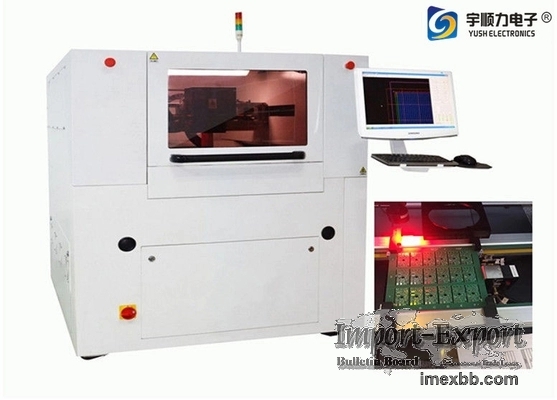

Inline PCB depaneling Router, YSAMT-4C



An on-line PCB which is specially used to cut PCBA components(panel) into
separate parts, featuring rail-mounted structure without jig cutting. It can be
put into production immediately. Featuring ESD static monitoring, cutting
stress feedback, and automatic tool changing, it can reach a top speed of 60000
rotates. The control system developed on the basis of our RM system can ensure
customer’s rapid and accurate programming.



Specification:



Model YSATM-4C
Machine Size 1000*1200*1533mm
Weight Approx 1900kgs
Max PCB Size 350*350mm
PCB Thickness 0.4-6mm
Transmission height 900±50mm
Transmission direction Left -> Right
Transmission speed 1500mm/s(max)/adjustable
Feeding plate type Section-type transportation guide rail
Rail width adjustment Automatic
Communication signal of upper and lower computers SMEMA
PCB Positioning Upper and lower guide rail clamping
Picking system 360°rotary clamping system; 2 groups of vacuum suction nozzles
at most, 4 groups of ESD belt transportation/batch panel forwarding units at
most
Cutting spindl/speed Germany KAVO, 60,000rpm/min
Cooling type Air compression
ESD monitoring Yes
Automatic tool change Yes
Cutting stress feedback Yes
Break blade check Yes
Cutting speed 1-200mm/s
Cutting accuracy ±0.5mm
Repeat positioning accuracy ±0.01mm
Coordinate moving speed 1000mm/s
Out plate type ESD belt transportation/batch panel forwarding unit
Waste collection type Out off the track
Procedure programming GERBER drawing import/Editing program through visual
system
Air supply 5-8kg/cm2
Power supply AC380V±5%, 50/60Hz, 3KW


Features:



1. Automatic tool change

2. ESD monitoring

3. Cutting stess feedback

4. Automatic production mode
5. Linkage between Spc statistic functionand customer’s management system-ERP

6. Can be equipped with explosion-proof function of vacuum cleaner



High reliability cutting system



Germany KAVO high-speed principal axis with a top speed of 60000 rotates,
featuring ESD static voltage monitoring and the functions of cutting stress
feedback and automatic tool changing.



Multiple Milling Knife High Speed PCB Depaneling Machine In Line Router With
Linear Guides / Blade 0



Super Vision System



A precise machine visual system which consists of German imagining industrial
camera, Moritex Lens and measurement-level light source; it

supports all functions of machine calibration, compensation and positioning,
featuring highstablility and anti-disturbance capacity.



Multiple Milling Knife High Speed PCB Depaneling Machine In Line Router With
Linear Guides / Blade 1



High reliability PCB gripper system



A perfect solution without jig cutting; A PCB clamping size scope of 2mm, the
pick up device can realize repid loading/uploading, featuring high stability
and low cost.



Multiple Milling Knife High Speed PCB Depaneling Machine In Line Router With
Linear Guides / Blade 2



Automatic tool changer



The standard tool changer supports three kinds of 3.175mm tools, each of which
has a top loading Capacity of 10 ones. It is combined with precise clamping
system and lifting system; three axes -X1,Y1 and Z1 of the cutting mechanism
can realize tool changing.



Multiple Milling Knife High Speed PCB Depaneling Machine In Line Router With
Linear Guides / Blade 3



ESD ATPD panel forwarding system



Panel forwarding solution 1: the cut PCB will be delivered by clamping system
to belt transmission line, and then sent by ESD transmission line via machine
into assembling line, or be picked up and loaded into product case by
customized manipulator solution.

Panel forwrding solution 2: use batch panel forwarding unit ARM-1 dismantle
belt transmission line from machine, insert panel forwarding unit from behind
the machine, and directly load the panel into blister box in ARM-1 via clamping
system. The solution is featured By simplicity and convenience.





Multiple Milling Knife High Speed PCB Depaneling Machine In Line Router With
Linear Guides / Blade 4
