Multi-layer Wire Mesh Pleated Filter

Multi-layer Wire Cloth Pleated Filters
Pleated Stainless Steel Mesh Filter Elements for polymer melt extrusion,
Supported with Perforated tube, Welded and bonded at top and bottom with flange
or fittings

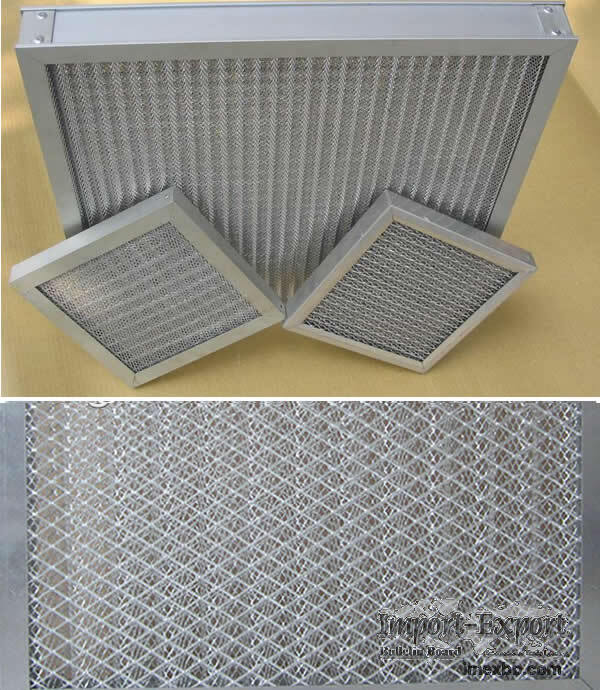

Multi-layer Wire Mesh Pleated Filters have increased filter area by pleating
compared with disc or pack type extruder screen. Filter mesh options include
Stainless steel sintered fiber web and stainless steel wire woven cloth ( plain
weave, twill weave and Dutch weave). Layers include Coarse Mesh and Fine Mesh
Cloth Filter Layer, Perforated or Expanded Support Layer, Protective Layer.
Both bottom and tops are sealed or welded with rings, flange or fittings. The
sheet metal perforated is welded as inner support or outside protection tube
for the pleating sheet of woven mesh cloth layers.

Advantages of Pleated Stainless Steel Mesh Candle Filters:
High dirt holding capacity;
High reliable standard specifications;
Low pressure drop due to high porosity;
Accurate filtration rating;
Easily cleanable by conventional chemical cleaning;
A long life-span.

Available filtration rating of pleat type stainless steel filter(micron) :
3,5,7,10,15,20,25,30,40,60
Any outline size available according to customer's requirement.
