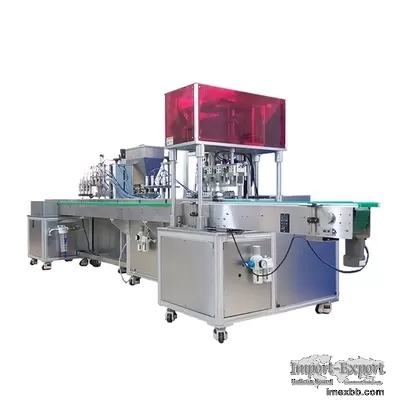

Multi Head Cosmetic Filling Machine 20-50BPM Bottle Filling Capping Machine

PRODUCT DESCRIPTION
High Quality Automatic Pump Table Type Integral Perfume Liquid Bottle Roller
Bottle Filling Capping Machine

This machine adopts piston pump and rotary valve, suitable for filling all
kinds of thick & sticky material:
In food industry like edible oil, yogurt, tomato paste, chilli sauce, honey,
butter, ketchup lunch meat etc.
In cleaning liquid and cosmetic industry, like shampoo, liquid soap, hand
sanitizer, laundry detergent, shower gel, cream, lotion, hair gel, etc.
In car products industry, like motor oil, lube oil, antifreeze, brake fluid,
fuel additive, screen cleaning liquid etc.
In pharmaceutical industry, like syrup, oral liquid , alcohol etc.
The machine can be made with 4 filling heads/ 6 filling heads/ 8 filling
heads/ 10 filling heads/ 12filling heads ,16 filling heads, 18 filling heads
etc, according to the filling capacity customers needed.


Technical Parameters:

Model FPS-1 FPS-2
Capacity 20-50/min 50-100/min
Filing head number 1 2
Filling volume 2-100ml 2-100ml
Filling accuracy ≤ ±1% ≤ ±1%
Capping rate ≥ 99% ≥ 99%
Power 2KW 3KW
Voltage 220/380V, 50/60Hz 220/380V, 50/60Hz
Weight 500kg 700kg
Dimension(L*W*H) 1800*1000*1700mm 2000*1200*1700mm






High Quality Automatic Pump Table Type Integral Perfume Liquid Bottle Roller
Bottle Filling Capping Machine with Conveyor
Precision filling valve.
1, widely used in filling machinery, especially suitable for fine and
complex materials.
2. Fast filling speed.
3, exquisite and compact, easy to mirror or pipeline layout
4. The special sealing design at the bottom of the filling mouth prevents
leakage during filling.
5. Chamfering structure at the bottom of filling head. With fixed effect,
can be submerged into the bottom of the bottle filling.
6. With motor control, the filling valve can rise synchronously with the
liquid level, effectively reducing foam generation.
Description:
1. Ceramic pump is used for common or special purposes, with high filling
precision and large adjusting dose range.
2.Low liquid level receiver, easy to clean.
3. No bottle filling, no drip automatic stop
4. The filling system has the function of shrinkage, no drip leakage
5. Suitable for all kinds of viscosity filling.
6. Filling nozzle into the bottle filling, and slowly move up to avoid
bubbling.
7. Filling and capping are integrated into the bottle body, economical and
practical
Low space occupancy
8. The machine is designed according to GMP requirements.
High Quality Automatic Pump Table Type Integral Perfume Liquid Bottle Roller
Bottle Filling Capping Machine with Conveyor

High Quality Automatic Pump Table Type Integral Perfume Liquid Bottle Roller
Bottle Filling Capping Machine with Conveyor
Servo motor driven filling
1, fast speed, high precision, good stability;
2. High speed filling is used in the initial stage of filling. When filling
volume is close to the target, slow filling can be used to prevent liquid
overflow pollution bottle mouth;
3, easy to adjust, filling specifications only need to change the parameters
on the touch screen, dose adjustment can also be adjusted on the touch
screen;
4, compared with the traditional filling method, servo motor driven machine
is not affected by the change of compressed air pressure, higher production
efficiency.

Automatic Filling machine is controlled by computer via an auxiliary device
(such as a cylinder block bottle system, stop bottles system, lifting
system, feeding control, counting devices, etc.) to complete the automatic
filling in the absence of personal operating conditions.
