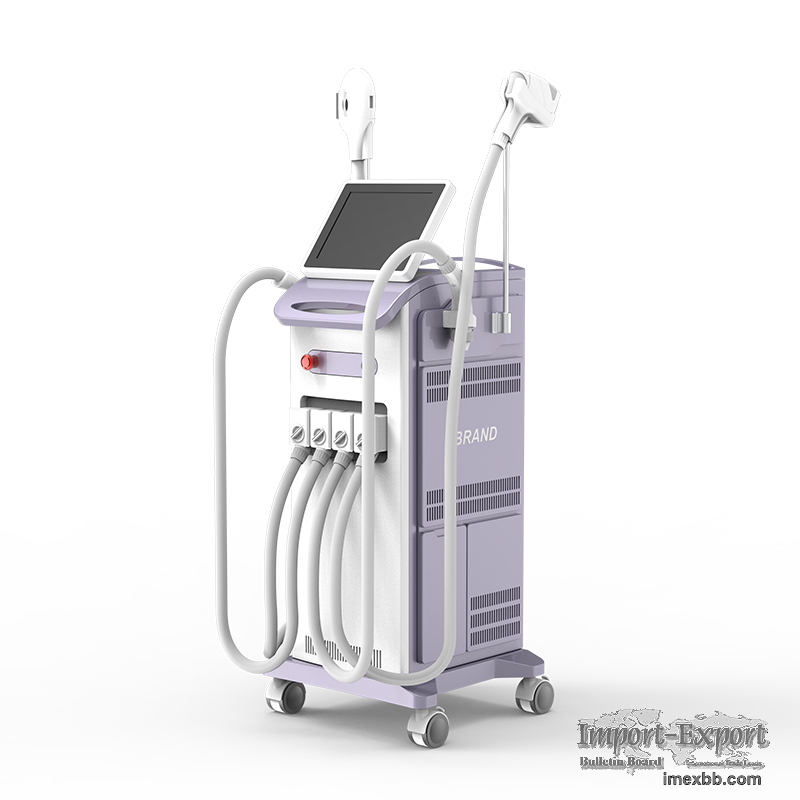

Multi-function Diode Laser + IPL Opt E-light + Q Switch Nd Yag Laser + RF R

Applications
- Laser hair removal-Acne treatment -
- Photo rejuvenation -
- Skin whitening -
- Spider vein treatment -
- Pigmentation treatment -
- Tattoo removal -
- Carbon peeling -
- Wrinkle removal -
- Body lifting -

Specialty of QM-230+

Independent power supply for each system. This well ensures each system has
strong and stable energy.Inside structure is very reasonable and every line is
clear. All the spare parts are fixed to metal shelf.
* 3000W power supply for diode laser system
* 2000W power supply for E-light (IPL SHR E-light) system
* 500W power supply for ND yag laser system
* 100W power supply for RF system

Spare parts we use
* UK lamp, US laser bars
* 8L big water tank with water level monitor
* 2 Korea imported water filters
* Schneider brand switch
* 4 Japan imported big fans + 2 big radiator
* Latest brushless DC water pump with lift 15m
* Pulse water switch to monitor water flow
* Stainless steel board between connector and internal

Intelligent Diode Laser : 20 Million shots, US Coherent Laser Source
Both 808nm and Triple Wave available

* Classical spot size 15*15mm
* Extra cooling head 25*25mm
* Cooling system: air + water + TEC + Sapphire
* Super good cooling effect, truly painless

CIA™ Technology- Cooling In Advance
It uses 25mm * 25mm TEC cooling tips to cool the skin before, during and after
treatments. It can protect the epidemis from hurt, reduce the pain during hair
removal, and increase the comfort for patients.

ICE™ Technology - Simultaneous contact cooling
It is an advanced technology that cools the skin continuously during
treatments. It minimizes the risk of burns on the epidermis while maintaining
heat to penetrate dermis where hair follicles are

ND Yag Laser Handle : 3 Million Shots, UK Lamp
* Super long life of 3 million shots, at least 5-10 times longer than others!
* UK xenon lamp + Φ6 rod
* Big and round spot size, very uniform energy output

We offer 3 tips to cover all customer needs.
532nm wavelength: get rid of freckles, eyebrow tattoo, failed eye line tattoo,
tattoo , lips line, pigment, telangiectasia in shallow red, brown and pink and
etc. light color
1064nm wavelength: get rid of freckles and yellow brown spot, eyebrow tattoo,
failed eye line tattoo, tattoo, Birthmark and Nevus of Ota, pigmentation and
age spot, nevus in black and blue, scarlet red, deep coffee and etc. deep
color.
1320nm wavelength: shrink pores removal, poblackhead removal, skin tightening
and whitening, skin rejuvenation, wrinkle removal.

E-light Handle : Super 1 Million Shots, UK Lamp
* UK imported xenon lamp
* TWO EXTRA Korea imported water filters
* Unbelievable lifespan of 1,000,000 shots, at least 5 times longer than
others!

We offer 5 filters for this Elight handle. So that this handle can cover all
below functions:
480nm~1200nm: acne treatment
530nm~1200nm: skin rejuvenation
590nm~1200nm: skin whitening, pigment treatment, spider vein treatment
640nm~1200nm: hair removal for fair to yellow skin
690nm~1200nm: hair removal for dark skin

RF Handle : Unlimitted Shots
3 Treatment tips for different area:
Small (21mm): for eye round treatment
Middle (27mm): for face treatment
Big (36mm): for body treatment

RF-lifting skin tightening is a modern treatment based on radio waves. It's a
safe and effective and
does not require downtime. Patients can see skin tightening immediately after
treatment. With proper skin care, results can last
for two to three years.

Technical Specification
Specification Diode Laser E-light IPL SHR OPT Nd: Yag Laser RF
Power supply 2000W 2000W 500W /
Laser power 500w-800w / 15W /
Energy/max 1-166J/cm2 1-50J/cm2 1000mJ 1-100W
Wavelength 808nm or Mixed Wavelengths 480/530/590/640/690nm
532/1064/1320nm /
Spot size 15*15mm 15*50mm(12*30mm optional) 6mm 20/28/35mm
Pulse duration 10-400ms 1-12ms 10ns-20ns /
Pulse interval / / / 0-3000ms
Frequency 1-10Hz
Cooling Level 1-5 level
Cooling System Air + Water + Wind + TEC + Sapphire sking contact cooling
Operation 10”TFT True Color Touch Screen
Electrical input 90-130V, 50/60HZ or 200-260V, 50HZ

Minimum Order: 1 sets
