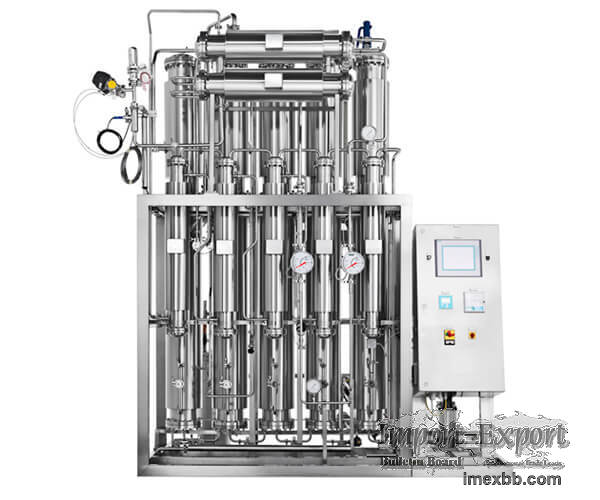

MULTI-EFFECT DISTILLER

The water for injection preparation system is a key GMP system. Multi effect
water distiller is the key equipment of the most widely used WFI preparation
system at present. BIOCELL's multi column distillation plant adopts high
temperature and high pressure operation to ensure stable production of pyrogen
free water for injection. The water for injection produced by the multiple
effect distillation water machine fully meets the requirements for water for
injection in the current American Pharmacopoeia, European Pharmacopoeia,
Japanese Pharmacopoeia and Chinese Pharmacopoeia.

Specification of Multi-Effect Distiller
Specification Output of Distilled Water (L/h) Steam Consumption (kg/h)
Purifed Water Consumption (L/h) Cooling Water Consumption (L/h) Overall
Dimension LxWxH (mm)
LD (S) 100-4 >100 30 120 50 900x700x2000
LD (S) 200-4 >200 60 240 100 1000x800x2000
LD (S) 300-4 >300 90 360 150 1100x800x2200
LD (S) 500-4 >500 150 600 250 1400x900x2500
LD (S) 500-5 >500 130 600 100 1600x900x2500
LD (S) 1000-5 >1000 240 1100 200 1700x1100x3100
LD (S) 1000-6 >1000 190 1100 20 2100x1100x3100
LD (S) 1500-5 >1500 350 1670 290 2700x1100x3700
LD (S) 1500-6 >1500 290 1670 90 3200x1100x3700
LD (S) 2000-5 >2000 440 2200 210 3200x1100x4000
LD (S) 2000-6 >2000 390 2200 110 3600xI100x4000
LD (S) 3000-6 >3000 810 3300 150 4000x1200x4100
LD (S) 4000-6 >4000 880 4400 200 4300x1300x4200
LD (S) 5000-6 >5000 980 5500 250 4600x1400x4200
LD (S) 10000-6 > 10000 2250 11000 450 4900x1600x4800

How Does The Multiple Effect Distiller Works？
The working principle of the multi effect distilled water machine is that the
fully heated raw water is evaporated and condensed by multi effect to remove
non condensable gas and impurities, so as to obtain high-purity distilled
water. To ensure the quality of distilled water, the raw water must be
pretreated. Because of multiple effect evaporation, the heat is fully utilized.
Each effect evaporator adopts the principle of vertical tube type falling
liquid film evaporation, plus a special structure of feed water distributor, so
that the feed water can form a film and flow evenly in the tube. The multi
effect distilled water machine eliminates the dry wall phenomenon caused by
uneven distribution of local feed water, greatly improving the evaporation
efficiency. The multi effect distilled water machine has the characteristics of
small size, light weight, large water yield, and good water quality stability.

FEATURES OF MULTI EFFECT DISTILLER
01.
Unique three-stage separation mode to fully ensure the quality of produced
water.

02.
New expansion process, effectively avoiding cross contamination.

03.
PLC+HMI full-automatic control mode.

04.
Fully comply with GMP, USP and cGMP requirements.

Now the price of purified water system pharmaceutical is reasonable, if you
have needs, please leave us a message.
