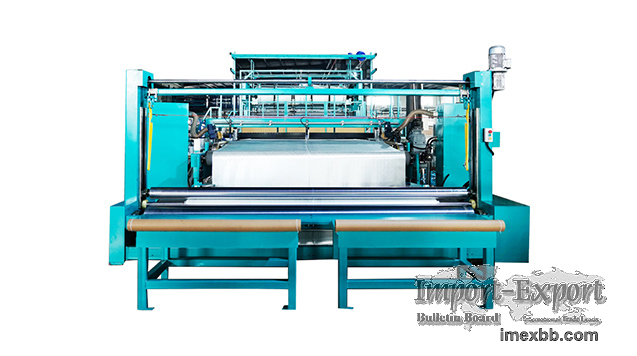

MULTI-AXIAL WARP KNITTING MACHINE

RSM3/3 series glass fibre and carbon fibre multi axial warp knitting machine
developed by Changzhou Run Feng Yuan Textile Machinery Manufacturing Co.,
Ltd. can bind warp knitting coils to warp, weft and oblique lining yarns
through binding yarns to form multi-layer composite fabrics. The angle of
oblique lining yarn is adjustable between 30°-60°. The number of layers of
multi-axial warp knitted fabric can be adjusted according to needs, and the
lined yarn can be all kinds of ordinary raw materials or high strength and
high modulus yarns. According to the mechanical properties of the yarn, the
multi-axial warp knitted fabric lined in layers has tensile and shear
resistance in all directions, lightweight, flat surface, difficult corrosion
and easy coating. It is widely used as the base cloth of textile composites
in various industries such as filtration and reinforcement, as well as in
various high-tech materials such as aviation and aerospace.

WHAT IS MULTIAXIAL WARP KNITTED FABRIC？
The multi-layer composite fabric produced on the "multi axial Raschel warp
knitting machine" is formed by the warp knitting coil binding the warp, weft
and oblique three-way full width weft lining yarn together. The angle of
oblique lining yarn is adjustable between 30 °- 60°.

APPLICATION OF MULTIAXIAL WARP KNITTED FABRIC IN WIND POWER FIELD
Multi axial warp knitted reinforced materials are increasingly used to
manufacture wind turbine blades because of their unique properties.
Generally, when designing the blade skin, the fabric structure (uniaxial,
biaxial and multiaxial) can be selected according to the different forces.
Multi axial fabric is mainly used at the root of the blade. The reasonable
laying of 40 layers of fabric is used to bear the shear force generated by
torque.

If you need any kinds of biaxial warp knitting machine, please contact us,
as a professional knitting machine factory, Runyuan is willing to offer you
high quality products.
