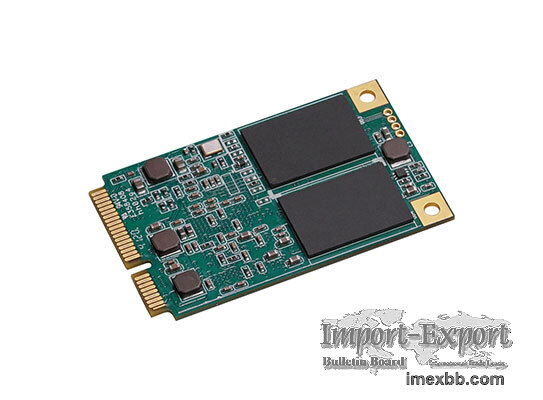

mSATA YSM600T-X-XXX

Yansen YSM600T-X-XXX is a well-balanced mSATA SSD with standard form factor and
great performance. Designed in SATA 6 Gb/s interface, the SSD is able to
deliver exceptional read/write speed, making it the ideal companion for heavy-
loading industrial or server operations.

Characteristics Of YANSEN mSATA YSM600T-X-XXX

Product Model YSM600T-X-XXX
Flash Type SLC/MLC
Capacity     8GB~256GB
Sequential Read（MAX） Up to 500MB/s
Sequential Write（MAX） Up to 250MB/s
4K Random Read 21490 IOPS
4K Random Write 21750 IOPS
Operating Temperature -20°C ~ 70°C, -40°C ~ 85°C
Storage Temperature -55°C ~ +95°C
Humidity 5%-95% RH non-condensing
Shock 1500G/0.5ms
Vibration 80Hz~2000Hz/20G
Operating Voltage DC 3.3V±5%
Power Consumption（MAX） 2.01W
Dimensions L50.95mm*W30.0mm*H3.5mm ±0.15mm
MTBF 2 million hours

Advantages Of YANSEN mSATA YSM600T-X-XXX

Interface: SATA3.0(6Gb/s)

66bit/1KB BCH ECC Code

Global Wear Leveling

Flash bad-block management

Flash Translation Layer: Page Mapping

Support S.M.A.R.T.

Support TRIM

Power Loss Protection

As a professional ssd company, we provide 120 gb msata, msata ssd 60gb, msata
256gb, msata 32 gb, ssd msata 128, etc. For msata ssd 512gb price or msata
256gb price, please feel free to contact us!

There are many ssd solution suppliers, but we are one of the best choices for
you.
