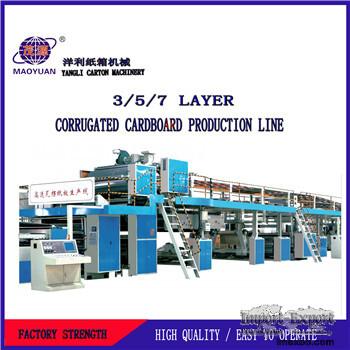

MS Corrugated Cardboard Production Line Corrugated Cardboard Machine

Corrugated Machinery Manufacturers

Product Description
Working Principle:
Tile line is the abbreviation of corrugated cardboard production line.It is a
streamline line consisting of pressing, corrugating, gluing, bonding, grading,
paper making, and code output. Such as single corrugated paper production line
is made of web frame, single- sided corrugated cardboard machine, composed of
rotary paper cutting unit, using web material and potato or corn starch
adhesive, single-sided corrugated board continuous production and cut into the
required specifications, production of cardboard no longer dry or dry, and glue
machine or laminating machine with the use of, can produce more than three
layers of corrugated cardboard.

Equipment configuration and technical description

name quantity remarks
Hydraulic reel stand 5 set 1.Multi-point brake, hydraulic drive lift, left
and right translation, medium.
2.The guide rail length 6000 mm, the trolley adopts 10 mm medium plate
welding.
Paper bike 10set
Single Paper preheating machine 4set Roller ￠800 mm,including
pressure vessel certificate. Electric adjustment package angle. The wrapping
angle can adjust the heating area of paper within 360 range
Adsorption Single facer machine 2set Corrugated main roller ￠320
mm,material using tungsten carbide. Imported main bearing,PLC automatic glue
control,man-machine interface touch screen,paper break automatic stop pressure
relief,steam heating mode
Triples preheating machine 1set Roller ￠800 mm,including pressure
vessel certificate. Electric adjustment package angle. The wrapping angle can
adjust the heating area of the paper in the range of 360.
Double gluing Machine 1set Cots 268 mm. diameter Each layer of independent
frequency conversion motor drive, PLC adjust the glue clearance and man-machine
interface.
Transport Bridge 2set Main beam 200 mm channel steel, independent
frequency conversion motor drive paper transfer, adsorption tensioning.
Electric correction
Double sided  machine 1set The frame 400 mm national standard channel
steel,chromium plating hot plate 600 mm *14 block,the entrance ￠mm hot
cylinder causes the surface paper to raise the temperature extremely fast 6
groups to touch the whole process pressure plate design structure. PLC
automatic control pressure plate. Temperature display,frequency conversion
motor.400

Type electric slitter scorer  machine 1set 10 scourer and 6 slitter
Tungsten alloy blade, six-knife ten-wire type, electric row knife, electric
lift left and right movemen
Computer NC-cut off machine 1set Full AC Servo Control, Energy Storage
Brake, Spiral Knife Structure, Oil-immersed Gear Drive
Sheet transfer conveyor system 1set Imported high strength belt output,
paper side standard conveyor
Rubber station system 1set Pipeline customer self-provided. The device
consists of carrier tank, main tank, storage tank, rubber pump and rubber pump.
 Air supply system 1set Steam components including piping valves, trap
valves, meters, etc. in equipment, customer-owned heat source and piping
Electrical control cabinet system 1set Electronic control system:
adsorption single-sided machine, driving part, electric thin knife machine,
double-sided machine, glue coating machine all adopt frequency conversion
motor, Delta frequency conversion control system. The operation interface is
simple and convenient, the speed display control cabinet is equipped with each
unit speed display, the unit calls, the emergency stop function.
 The main relay adopts French Schneider famous brand products.
 vapour system 1 set Steam components including piping valves, trap valves,
meters, etc. in equipment, customer-owned heat source and piping

Main technical parameters and requirements of production line

Maximum production 1400mm   Design Production Speed 180m/min
Three-tier working 100-150m/min   Five-tier working 80-
120m/min
Precision of Longitudinal Cutting Paper mm ±1   Cross cutting accuracy
mm ±1
The above speed index shall be up to: production width of 1400 mm, meet the
following paper standards and ensure that the surface temperature of the heated
parts of the equipment is 175℃. Table 2
Surface paper indicators g/㎡100-180 g/㎡ ring pressure index
(N.m/g)≥8(moisture content 8-10%) g/㎡100-180≥(N.m/g)
Core paper indicators g/㎡80-160 g/㎡ ring pressure index
(N.m/g)≥5.5(moisture content 8-10%) g/㎡80-160 g/㎡(N.m/g),5.5(moisture
content 8-10%)
 Paper finger g/㎡90-160 g/㎡ Ring pressure index (N.m/g)≥6(moisture content
8-10%) g/㎡90-160 g/㎡(N.m/g)6(moisture content 8-10%)
Flute type combination
Steam requirements  maximum pressure16kg/cm2 wirking pressure 10-
12kg/cm2  dosage4000kg/Hr
 Electricity AC380V 50Hz 3PH Installed capacity ≈250 KW The common
power ≈150 KW
 compressed air 9 kg/cm2 maximum pressure Common pressure kg/cm2
4-8 Amount m3/min 1
 space usage ≈Lmin85m*Wmin10m*Hmin5m

Hydraulic reel stand
Structural characteristics：
 ★ use full hydraulic drive to complete the base paper
clamping,loosening,moving to the middle,left and right translation and other
actions,the base paper lift using hydraulic drive.
 ★ brake adjustment adopts multi-point brake system.
 ★ each paper rack with two paper cars from both sides can be paper at the
same time.
Technical parameters：
 range： maximum 1400 mm minimum 1000 mm 2、 diameter： maximum 1300 mm
minimum 350 mm 1
 paper frame spindle diameter ：￠240 mm 4、 gas source working pressure
(MPA):0.4-0.8 MPA
 Equipment Size： Lmx4.3*Wmx1.8*Hmx1.4 5 6. unit weight： maximum Kg 4000

Hydraulic system parameters：
 Working pressure (MPA):16-18 MPA 2, lift hydraulic cylinder :￠100×440 mm
 Tightening hydraulic cylinder ：￠63×1300 mm 4、 Hydraulic station motor
power ：3 KW --380V --50Hz
 5, Solenoid valve voltage： V 50Hz 220

Main purchased parts, raw materials and origin:
Main Name producing area Material Type
 main axle  Tin Steel Production  242mm diameter
 swing arm  Production  HT200Resin sand cast iron
 wallboard  Jigang Q235A Welded Parts
 bearing Ha, Wa, Lo
Tooth paper clip Xu Sheng, Zhejiang 3.4 inches
Main electrical appliances  France Schneider
 push-button Zhengtai NP2 Series
 air switch France Schneider
 pneumatic component Sonno, Zhejiang
 hydraulic pressure station Shandong Zaozhuang
 Brake pump  Zhejiang

Structural characteristics：
 ★ track is completely buried,the main frame is 140 channel steel welded with
￠20 mm cold drawn round steel,the track length is 6000 mm.
 ★ each paper rack with two paper cars from both sides can be paper at the
same time. Push the reel in place.
Main Outsourced Parts, Raw Materials and Origin:
Main Name Brand or origin Material Type
Track and Paper Truck Tanggang or Jigang 14 channel, Q235A、 steel
 bearing Ha, Wa, Lo

We are pleased to deliver Corrugated Cardboard Production Line, Corrugated
Cardboard Machine. Safe payment and on time deliver time will give you.Our
company specializes in the production of corrugated cardboard production lines,
carton production lines, we provide customized services, come to consult us!

Minimum Order: 1 sets
