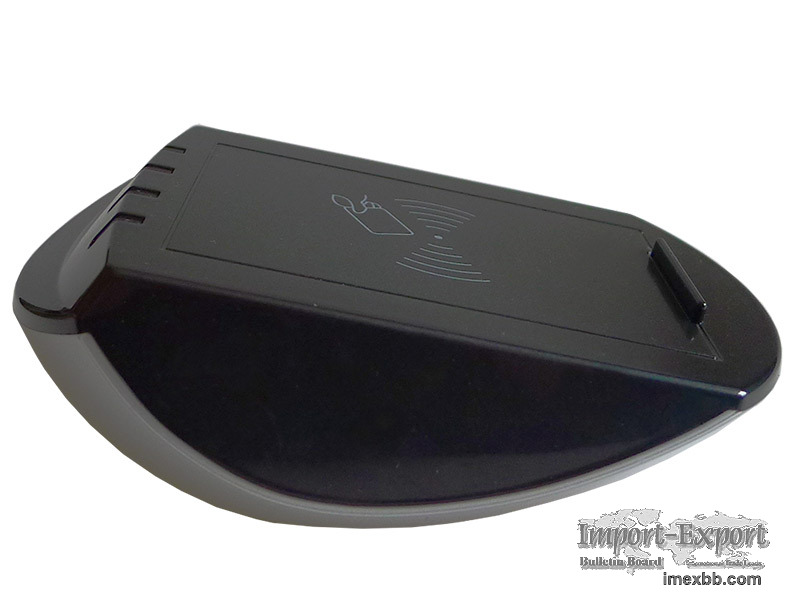

MR7901 (Compatible USB PCSC Interface)

Overview
MR7901 series desktop contactless IC card reader/writer is base on NXP series
RF chip with high performance MCU. The communication is according to USB PC/SC
standard. The reader fully supports the IC card according to ISO14443 and
ISO15693 standard, especially completely supports ISO14443-4 contactless CPU
card.
The reader builds in 4 SAM slots, and fully supports SAM according to ISO7816.
Main Characteristics
• Compatible USB PC/SC interface
• High speed MCU and advantage firmware provide very high card process speed
• RF interface and protocol process with EMV2010 LEVEL 1 certification ability
• support many kind of card/tag
Technical parameters
• PCD: MF RC531; CL RC632; SL RC400
• Working frequency: 13.56MHz
• RF protocol: ISO14443A, ISO14443B, ISO15693
• Operating distance: 100mm (MIFARE One, typical)
• SAM slots: 4 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max. 115200bps)
• Display: 4 LEDs, blue, yellow, green, red
• Buzzer: Build in
• Interface: USB PC/SC compatible
• Power supply: DC5V ± 10%
• Power consumption: 0.9W
• Dimension: 135mm * 100mm * 45mm
• Weight: About 100g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• SDK: Base on Windows, free
• Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
• ISP: Terms
• RoHS: Compliant

Minimum Order: 1 pieces
