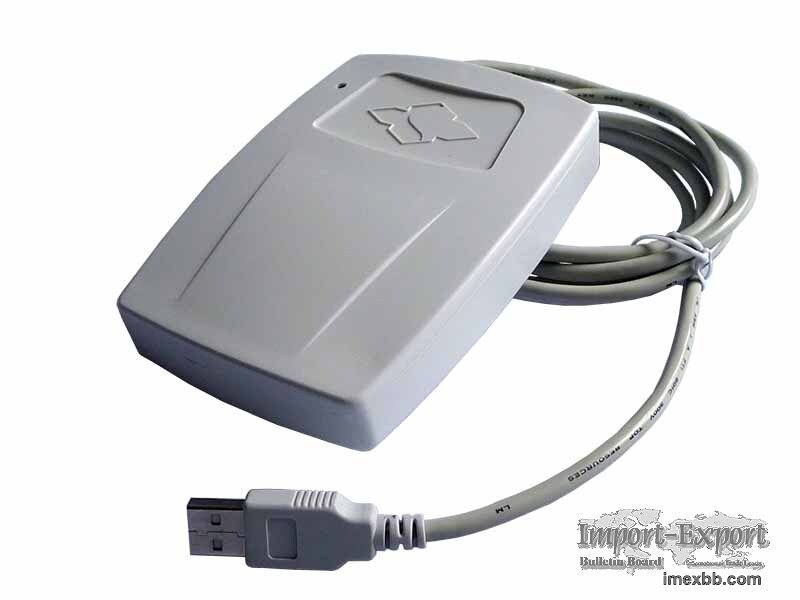

MR7801 (Master Reader Classic, RS232C or USB bridge)

Overview
MR7801 series reader supports series IC cards according to ISO14443, ISO15693;
various contactless IC card under international standard; especially the
contactless CPU cards under ISO14443-4. Meanwhile the reader's RF interface and
protocol process are with EMV2010 LEVEL 1 certification ability. There are 4
SAM card slots in the reader(T=0 and T=1). The reader supports card-reset of
various communication rate; PPSS operation after card-reset. Meanwhile the new
outside casing show you a fresh and respect.
Main Characteristics
• Full function PC software
• Terms many kind of card/tag
• RF interface and protocol process with EMV2010 LEVEL 1 certification ability
Technical parameters
• PCD: NXP MF RC531, CL RC632, SL RC400
• Working frequency: 13.56MHz
• RF standard: ISO14443A, ISO14443B, ISO15693
• Operating distance: 100mm (MIFARE One, typical)
• SAM card slot: 4 slots, terms ISO7816 (T=0 & T=1, terms PPS, Max. 115200bps)
• Display: 4 LEDs, blue, yellow, green, red
• Buzzer: Build in
• Interface: USB (build in CP2102 USB to RS232 bridge)
• Power supply: DC5V ± 10%
• Power consumption: 0.9W
• Dimension: 135mm * 100mm * 45mm
• Weight: about 100g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• PC software: TransWin
• SDK: Base on Windows, free
• Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
• ISP: Terms
• RoHS: By order

Minimum Order: 1 pieces
