MR7622 (USB HID interface & keyboard simulator, Read card only, Programabl

Overview
MR7622 series desktop contactless IC card reader is based on NXP series RF chip
with high performance MCU. The communication is according to USB HID standard.
There are 2 USB devices to implement the functions. One is USB keyboard for
DATA output. The other is USB compliant device for DATA output format
configuration and ISP function. The DATA output format is very flexible. The
reader could output any sector any byte in any format. TransConfig, the
configuration tool is very easy to use to loadthe configuration file to reader.
The configuration file is easy to build. Please to read “JINMUYU USB HID
Keyboard Simulator IC Card Reader General Technical Manual.pdf” to build the
configuration files. And we will help you to make the configuration file.
The reader supports the IC card according to ISO14443A, ISO14443B and ISO15693
standard.
Main Characteristics
• USB HID keyboard simulator data output
• Data output format is very flexible
• RF interface and protocol process with EMV2010 LEVEL 1 certification ability
• Delicate outer covering
Technical parameters
• PCD: MF RC531, SL RC400, CL RC632
• Working frequency: 13.56MHz
• RF protocol: ISO14443A, ISO14443B
• Operating distance: 100mm (MIFARE One, typical)
• Display: 4 LEDs, blue, yellow, green, red
• Buzzer: Build in
• Interface: dual port, USB HID keyboard simulator and USB HID compliant device
• Power supply: DC5V ± 10%
• Power consumption: 0.9W
• Dimension: 135mm * 100mm * 45mm
• Weight: about 100g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• PC software: no need, direct output to editor
• ISP: Terms
• RoHS: By order

Minimum Order: 1 pieces

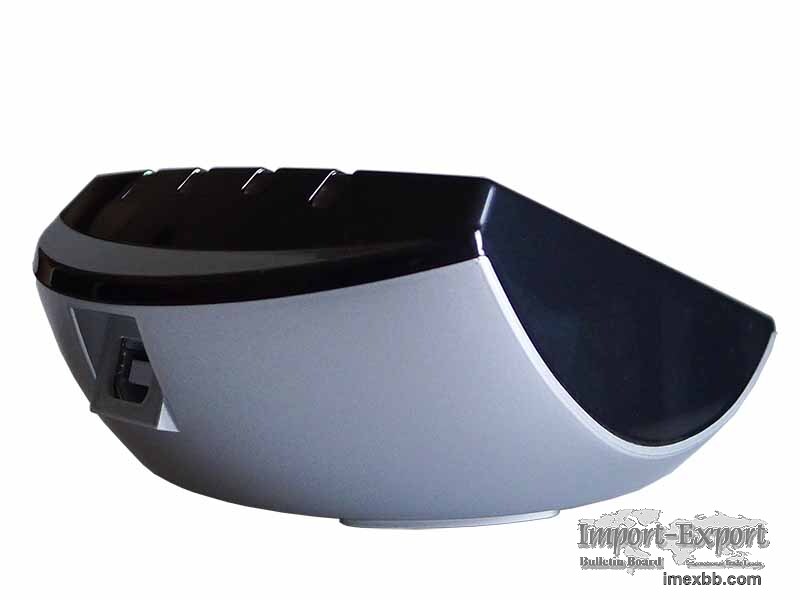

Click to Enlarge
