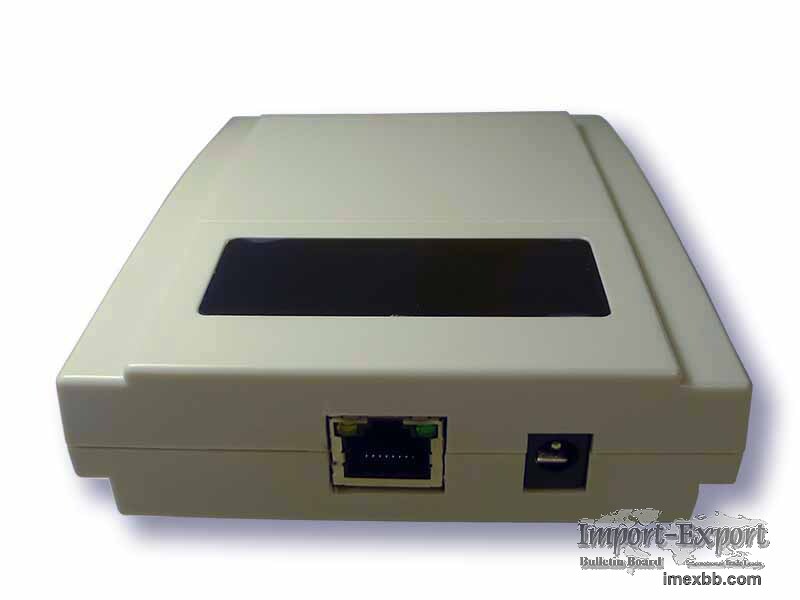

MR730 (Master Reader Classic, Ethernet)

Overview
MR730 series desktop contactless IC card reader/writer is base on NXP series RF
chip. The communication port is Ethernet. The reader fully supports the IC card
according to ISO14443 and ISO15693 standard, especially completely supports
ISO14443-4 contactless CPU card. The reader builds in SAM slot, and supports
SAM according to ISO7816 (Max. 115200bps).
Main Characteristics
• Ethernet interface
• High speed MCU and advantage firmware provide very high card process speed
• Full function PC software
Technical parameters
• PCD: NXP MF RC500, MF RC531, CL RC632, SL RC400
• Working frequency: 13.56MHz
• RF standard: ISO14443A, ISO14443B, ISO15693
• Operating distance: 80mm (MIFARE One, typical)
• SAM slot: 1 slot, terms ISO7816 (T=0 & T=1, terms PPS, Max. 115200bps)
• Interface: Ethernet RJ45
• Baud rate: 9600 ~ 115200 BPS
• Power supply: AC adaptor DC5V
• Power consumption: 1.5W
• Dimension: 141mm * 100mm * 31mm
• Weight: about 100g
• Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
• Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
• PC software: TransWin
• SDK: Base on Windows, free
• Sample code: VC, VB, C++ Builder, DELPHI, Power Builder
• ISP: Terms
• RoHS: By order

Minimum Order: 1 pieces
