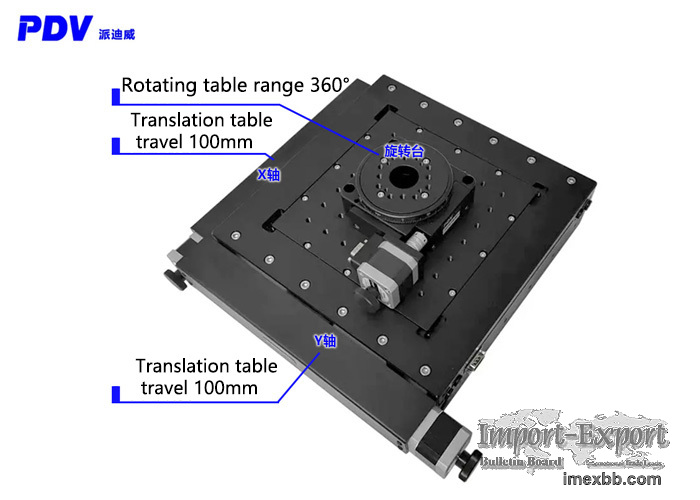

Motoriz Combined Stage XY Translation Table Electric Lifting Slide Table

Product details:
The product does not include the controller, and the controller is ordered
separately



Electric Integral Combination Stage: PT-XY100

Product features:

※ stepper motor is equipped as standard, which can be automatically controlled
by the company's motion controller.

※ the product is small and light in structure, which is suitable for use under
light load and low speed, as well as in scientific experiments.

※ high quality fine grinding lead screw drive, small lead, the same fine
fraction can achieve high resolution.

※ the ingenious structural design of air elimination check nut can minimize
the clearance of grinding lead screw pair.

※ the precision square guide rail is comfortable to move, and has the function
of laterally adjusting the guide rail preload and eliminating clearance. It can
be used in multi-dimensional combination.

※ the fine grinding of the bottom plate of the electric moving table and the
reasonable fixing mode of the guide rail greatly reduce the pitch and yaw of
the electric moving table, and greatly improve the straightness and parallelism
of the movement.

Product parameters:

Model Number

PT-XY100

Structure

Tra , vel Range(mm)

100mm

Platform(mm)

, 300mm x 300mm

Screw Guide

4

Travel Guide

Precise Crossed Roller Bearing

Stepper Motor

42(1.8°)

Material

Alum , inum Alloy

Surface Preparation

Black-Anodized

Load Capacity(Kg)

50

Weight(Kg)

8. , 3

Accuracy

Resolution(μm)

20 , (Non MS), 2.5(8 MS)

Velocity

40mm/sec

Repeata , bility(μm)

2

Absolute Accuracy(μm)

3

Straightness(μm)

5

Moving Parallelism(μm)

15

Pitching

, 50"

Yawing

25"

Back , lash(μm)

2

Lost Motion(μm)

2

Accessory

Insta , lling Grating Ruler (Optional)

Reloading Servo Motor (Optional)

Product dimension drawing:




Precision Electric Rotary Stage (Worm Gear): PX110-100

Product parameters:

Model Number

PX110-100

Structure

Ro , tation Range

360°

Platform Size

φ100mm

Transmission Ratio

180∶1 90:1

Drive Mechanism

Worm Gear

Travel Guide

Bearing

Stepper Motor (1.8°)

42BYG

Material Surface

Aluminum Alloy (Black-Anodized)

Central Load

45kg

Weight

1.7kg

Accuracy

Design Resolution

0.01°(Non-MS Driver)

0.0005°=1.8″(20MS Drive)

Velocity

25°/sec

Repe , atability

0.005°=18″

Absolute Accuracy

0.01°=36″

End jump accuracy

15μ

Backlash(μm)

0 , .005°=18″

Eccentricity



Lost Motion(μm)

0.005°=18″

Parallelis , m

80μ

Product dimension drawing:

PX110-100



Advantage , :
We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11
sets. We have a group of experienced high-level processing technicians. Our
products are sent to the Metrology Institute for random inspection every year
regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product
design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly
technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them
according to your requirements.
Motoriz Combined Stage XY Translation Table Electric Lifting Slide Table
