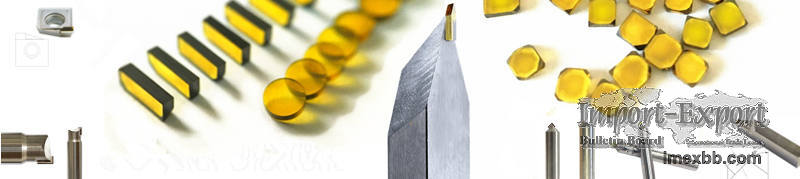

Mono Crystal Diamond Tools for Ultra Precision Machining

Description: The mono-crystal diamond tools can obtain excellent cutting
edge through grinding. The surface finish of single crystal diamond tool can
reach more than 0.01micron (Ra < 0.1 um)The world's top brands of raw
materials: E6 single crystal diamond.
Applications of Mono Crystal Diamond Tools:
Application industries: optical lenses, 3C, medical contact lenses,
electronic, jewelry, watch marking and automotive industry, etc
Types Of Mono Crystal Diamond Cutting Tools
Depending on the equipment (CNC machine tools, CNC machining centers, etc.)
and cutting processes used in different working conditions, single crystal
tools can be welded on different tool bodies as required to make different
cutting tools. Common types of single crystal tools，
Single crystal diamond inserts, Non standard Single crystal diamond turning
tools, Mono crystal diamond milling tools, Mono crystal chamfering cutters,
MCD grooving cutters, Single crystal ball milling cutters, monocrystalline
diamond end mill, etc
MCD non-standard square bar type turning tools
- Suitable for turning non-ferrous metals such as copper and aluminum. The
surface roughness after processing can reach Rz0.1~0.05μm, and the cutting
depth during processing does not exceed 0.05mm
MCD mono crystal diamond Arc cutting tools
- Mono crystal diamond tool is suitable for the forming and processing of
non-ferrous metals such as copper and aluminum. The size of the arc is
designed according to the requirements of the workpiece.
MCD Non-standard integrated top and bottom chamfering cutting tools
- The tool has two cutting edges, and one tool can realize up and down
chamfering without changing the tool, which is very cost-effective
Application of MCD non-standrad chamfering tool
- Chamfering of the outer frame of non-ferrous metals such as copper,
aluminum, etc.
- The peripheral chamfering of mobile phone shell parts.
- Reasonable design and speed feed can eliminate the residual tool marks in
the processing, and truly achieve the mirror surface of the processing
surface effect
- The grain processing efficiency is higher, especially the mosaic welding,
the speed can reach 70,000 revolutions/min, and the feed can reach 4000
mm/min, but it is inevitable that there will be residual tool marks in the
processing.

Precious metal processing, jewelry industry: gold, silver, platinum products
of carving processing.
Medical Industry: contact lens and IOL (single-crystal mills and drills).
Contact lens machining tools are free from scratches and burrs on the
contact lens that may occur during finishing process.
Printing industry: roller mould
Automotive industry: night driving optical system, projection lights,
aluminum alloy wheels, etc.Defense and aerospace industry: navigation gyro
for missiles New materials ceramics, engineering plastics. motorcycle
trailers, shipbuilding, rail transportation and other industries.
Advantages of Mono Crystal Diamond Tools:
Geometries and dimensions are maintained exactly.
- High homogeneity, no microstructure.
- Allows the production of highly precise cutting edges for maximum surface
accuracies.
- Cutting edges are extremely sharp.
- Machining can be performed without restrictive contours.No special tools
required.
- Constant process reliability and assured reproducibility.
- Surface qualities with Ra < 0.1 um are possible!
- Turning in polishing quality.

Pack: Cartons and bubble wrap
Payment: TT; Paypal;
Delivery Time: Seven to ten days
Sample: No free samples are provided
Certification:
FOB Port: Shanghai Qingdao Guangzhou

Minimum Order: 1 pieces
