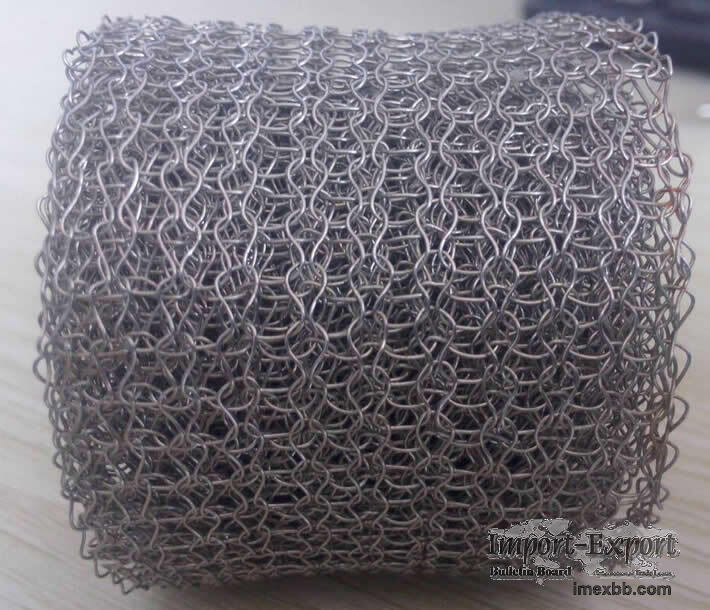

Monel Demister Pads

MONEL DEMISTER PADS OF KNITTED FINE MONEL WIRE MESH CLOTH IN MULITPLE LAYER
SECTION BLANKETS / MATTRESSES FOR SULFURIC ACID, HYDROFLOURIC ACID, BRINES
Monel Mesh, also known as Nickel alloy Mesh, can be used in corrosion
filtration environments including sulfuric acid, hydroflouric acid, brines, and
water.

We supply knitted monel mesh blankets used as demister pad in air filters,
breathers and separators made for cars, trucks and farm equipment.

Our monel mesh pad demisters are exported to U.A.E, USA and many other
countries.

Why Monel Wire Mesh Blankets?

The porous blankets designed and constructed of carefully knitted wire mesh can
efficiently abate mist particles.

As one of major alloy materials applied, Monel is a nickel (copper) alloy that
offers higher strength than unalloyed nickel while remains ductility.

Materials:
Monel 400
Nickel 201
Ni 200
N5 nickel


Types and Specifications of Monel Demister Mesh Pads and Blankets


Monel Demister Pad ASTM B164 (monel 400)

Pad, mist eliminator, style: york#431
Size: 3600mm od
Thickness: 150mm, total thickness with frame: 200mm
Density: 144 kg/m 3
Material: ASTM B164 (monel 400)
Including: 1.flat bar, 25 w x 3mm t, b-127(monel), 2.square washer, 40 x 40 x
3mm t, b-127(monel ), 3.round bar, 6mm dia, b-164 monel, 4.spacer rod, 6mm dia,
b-164(monel), 5.support beam, 200x200x12tx12t, sa36, 6.stud bolt with 3 nuts,
m12x270l, m12x290l, f468 alloy 400.



Pad Demister Monel
Pad, demister size: 1280mm diameter
Thickness: 152mm, total thickness with frame: 202.4mm
To pass through 24 inch (i.d 545.6mm) manhole
Material: monel
Including:
Flatbar (top grid) (25 w x 3mm t, monel)
Round bar (bottom grid) (6mm dia, monel)
Spacer pipe (3/8", sch 10s, monel)
Stud bolt with 2 nuts (m12x255l, alloy 400)



Fine Monel Mesh Blankets for Vessel 320:
Structure: Layers of knitted fine monel wire mesh, assembled in multiple layer
section, supported and sanwiched in monel. Lightweight grids.
Thickness: 6½ ( 150 mm )
Shape: Round circular
For vessel no: 320 with ID 746 mm in 8 pieces
Mesh style: 431

400 Monel Mesh Knit Loop Belt Blanket
Knitted Mesh Filter Mattress made of Monel Wire Cloth


Mesh Blankets Circular Demister Pad, Vessel No: 306

Mesh Material: Knitted Monel Wire Mesh
Structure: Layers of fine woven wire mesh fabric, assembled in multiple layer
section, supported and sandwiched in monel.
Thickness: 6½ ( I50 mm )
Shape: Round circular
Vessel: For vessel no: 306 with ID 2134 mm in 12 pieces
Style 431
