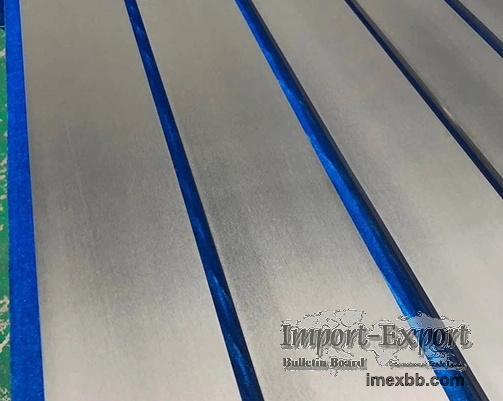

Molybdenum Target

Molybdenum target include molybdenum plane targets (molybdenum round targets
and molybdenum strip-type targets) and molybdenum rotating targets.

Molybdenum plane targets are formed by processing high-quality plates of our
company, and feature high density, no crack and sand hole inside, bright
surfaces, uniform color and luster as well as accurate dimensions.

Small molybdenum sputtering are processed by high-quality bars, and feature
accurate dimensions, smooth surface, high purity, etc.

Molybdenum sputtering target of the conventional size are produced by a hot
isostatic pressing process, and feature high density (10.15 g/cm³), fine grains
and good molding.

Conventional density: 10g/cm³~10.15g/cm³;

Special process density: more than 10.15g/cm³．
Molybdenum Target Specifications
Element Mo
Purity ≥99.95%(3N5)
Typical sample dimension φ153mm×φ123mm×1114mm
Density 10.15g/cm3
Hardness HV5:246-253
Grain Size 35μm
Appearance Ra≤0.4μm
Impurity Content
(powder) Pb ≤5ppm C ≤20ppm
Cd ≤5ppm Sb ≤10ppm
Si ≤10ppm Ni ≤30ppm
Cu ≤10ppm P ≤5ppm
Mg ≤10ppm N ≤50ppm
Bi ≤5ppm
Al ≤15ppm
Ca ≤15ppm
N ≤ppm
Note: all the specifications can meet the requirements of customers on high
accuracy through machining.

Molybdenum Target Application
Molybdenum target can be formed on the substrate film, widely used in
electronic components and electronic products, integrated circuits, information
storage, liquid crystal display, laser memory, electronic control devices; It
can also be used in glass coating field; It can also be used in wear-resistant
materials, high temperature corrosion, decorative supplies and other
industries.

Molybdenum Target Alloy Series
In addition to molybdenum target material, we can also provide molybdenum-
titanium alloy, molybdenum-rhenium alloy, molybdenum-niobium alloy, molybdenum-
copper alloy, molybdenum-lanthanum alloy, molybdenum-tantalum alloy, etc.

If you are looking for a reliable titanium mesh supplier, don't hesitate to
contact us!

Minimum Order: 10 kilograms
