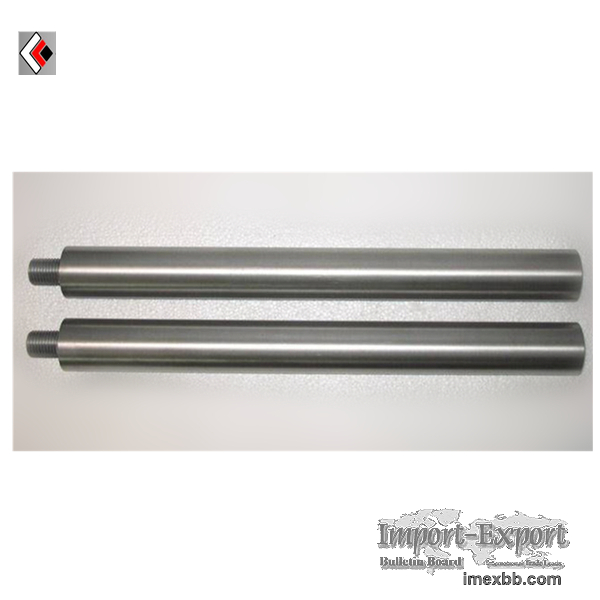

Molybdenum electrode rod

Specifications
1. Product name: Molybdenum electrodes
2.Material: Mo
3. high purity: 99.95%
4. Density: 10.2g/cc
5. Application: sapphire furnace, glass melting
polished/ground moly electrode:
Molybdenum electrode is electrodes made of material – molybdenum, by applying
its unique advantages—temperature resistance, continuous surface, stable edges
good electrical conductivity, excellent corrosion-resistance -- to improve its
entire quality and using age. Molybdenum electrode is silver gray metallic
luster. It is isostatic pressed to forge to various types after sintering with
medium frequency furnace and then turning, rolling, planning and milling.
Meanwhile, the quality is unchanged, which can be seen from external and
internal aspects, such as no lose side, no lose corner, and no crackle and
divide layer. Thus, the surface of the molybdenum electrode is smooth and
compact.
Molybdenum electrode can be used for glass industry,andwork in the glass
solution with the temperature of 1300°C. Molybdenum electrode is used as
electro-heat equipment of the glass fiber kiln. It is an important part in rare
earth industry. Its density is more than or equal to 10g/m3, and its purity can
reach 99.5%.
Molybdenum electrode:
Dia.(mm) Tolerance Length(mm) Tolerance
16-20 +1.0 300-1500 +2
20-30 +1.5 250-1500 +2
30-45 +1.5 200-1500 +2
45-60 +2.0 250-1300 +3
60-100 +3.0 250-800 +3

It`s mainly used for metallurgy and machinery industry. Other sizes and special
requests are available
Mo has a unique property of which it's melting point can reach 2610 tungsten
crucible is widely applied in high temperature vacuum furnace melting
environment such as sapphire growing furnace, quartz glass melting furnace, and
rare earth melting furnace. The working temperature of Mo sheet is above 1500.

The melting process of the raw material for wool and fiber production is always
by electrical heating with electrode, especially designed plate and Rod
electrodes are generally used.
We can provide stable quality Mo material with plate and Rod electrodes based
on uniform density, purity and fine metal grain strength property.
For glass melting application, high-purity, high-density, with other features
of exact measurement and smooth surface has decisive influence on the success
of quality control of glass melting and service life during meltng process.
Composition:
Grade The impurity content is not more than %
Fe Ni Al Si Mg C N O
Mo-1 0.01 0.005 0.002 0.01 0.005 0.01 0.003 0.008
Mo-2 0.01 0.005 0.005 0.01 0.005 0.01 0.003 0.02

Minimum Order: 1 kilograms
