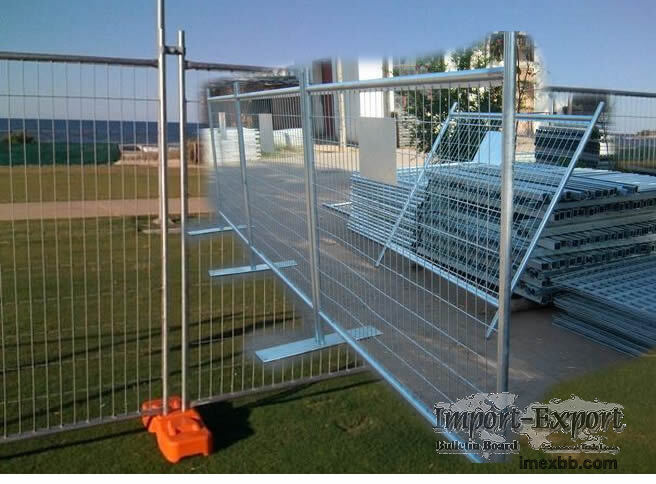

Mobile Fence Safety Barrier

We supply welded type mesh fences for temporary mobile security fencing uses.
Mesh Panels can be flat welded and dimensional curvy panels.

2M High Mobile Fence Welded Type
Frame: 33 mm diameter, 1.5mm galvanized hot dipped pipe
Infill Mesh Fabric: Welded mesh in opening of 250 mm x 50 mm welded of 3mm
galvanized wire.
In height of 1.8 m and width of 3 m.
Supplied with fence feet: 240X130X540 mm pvc base filled with concrete; and
galvanized steel clamp.



Yellow or Green Painted Welding Mesh Fence Panels, Welded temporary fence with
square tube
Welded Mesh Mobile Fence System with optional toppings of Barb wire for
military or security purpose, for example: ISPS International Ship and Port
Facility Security reasons.
Anticlimb panels options:

Pvc spraying(galvanized before pvc)
PVC coated(galvanized before pvc).


Welded net temporary fence with square tube forms anti-climb panel while square
tubing allows for easy stacking.
Mesh panel length: 2.1m * 2.4m
Wire diameter: 4mm (3.5mm-5mm)
Opening: 60mm * 150mm
Horizontal tube: 38mm; standpipe: 48mm: thickness: 2.0mm
Surface treatment: hot galvanized, pvc color painted

This plastic coated fence is mainly for storage, playground, venue, municipal
and other occasions, temporary barriers.
