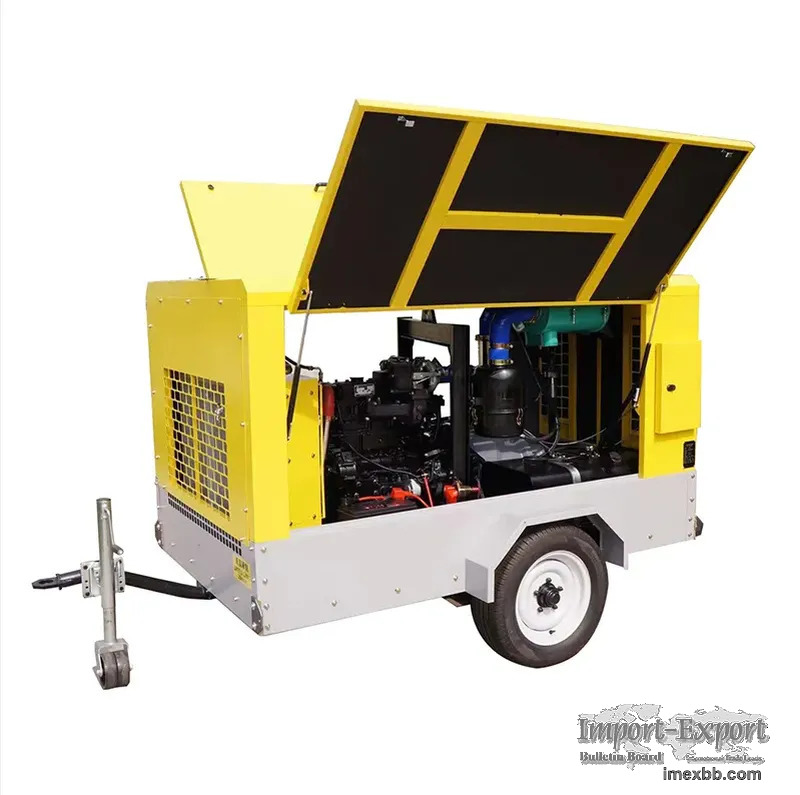

Mobile diesel screw engine compressor 194KW engine power air compressor 17b

Power: 13KW~520KW
Pressure: 0.8Mpa-2.5Mpa (8bar-25bar)
Machine Type: 8m³/min~484m³/min
Warranty: One year for the air compressor and two years for the head.
Service: Configuration, Parameters can be customized.
OEM&ODM.

* Road version of the axle, driving more reliable.
* On the ground open, safe and reliable use.
* Climbing design, more convenient maintenance.
* Center of gravity lifting rod, simple loading and unloading.




Overview
Mobile diesel screw engine compressor 194KW engine power air compressor 17bar
18bar
* Road version of the axle, driving more reliable.
* On the ground open, safe and reliable use.
* Climbing design, more convenient maintenance.
* Center of gravity lifting rod, simple loading and unloading.

AIR END
Using the latest independent intellectual property rights of BSC BS type wire
screw rotor host, higher efficiency, fewer parts, no wearing parts, reliable
operation, long life. BSC compression host adopts advanced equipment such as
MAZAK machining center in Japan, MAZAK laser cutting machine in Japan, KAPP
machine tool in Germany, HOLROYD in the UK to produce, ensuring the reliability
of products.

Engine
As a national enterprise, the diesel engine of this mobile screw air
compressor has a compact structure, making the whole system more efficient.
Good fuel economy: The engine has the characteristics of low fuel consumption,
which can effectively reduce fuel consumption while ensuring power output. The
single-cylinder four-valve structure of the machine adopts the technology of
double overhead camshaft and hydraulic tent-column, which effectively reduces
the mechanical noise and provides the user with
a more comfortable operating environment. Yunnei Power is the first
manufacturer in China to use and promote high pressure common rail technology
on 50 HP diesel engines, showing its leading position in technological
innovation.

Controller
This instrument is specially designed for parameter monitoring and fault
monitoring of diesel engine and gas engine driven air compressors in diesel
engine high pressure mobile air compressors. It is equipped with CAN
communication port and built-in J1939 protocol, and CAN read related parameters
through CAN interface of engine ECU.
The instrument uses TFT color large screen LCD display parameters, new original
UI design, engine parameters through analog pointer and digital display. The
LCD screen can display a variety of current fault states at the same time, and
can effectively warn when the engine is not working normally. Instrument built-
in simplified Chinese, English and other display interface can be selected, and
can be customized language interface according to customer requirements. All
parameters of the instrument can be adjusted by pressing buttons on the
instrument panel, or by using a PC via USB port or RS485 interface. A separate
controller protects the housing against damage and miscontact.
The whole machine design is tight, reasonable optimization space, more
reasonable optimization design for the intake and
exhaust and cooling system, reduce the temperature of the compressor and
compressed gas, the main connection pipeline is hose connection, prevent
resonance and reduce noise.
The shell of all equipment is equipped with special sound insulation cotton,
sound insulation and heat insulation.
The oil distribution drum and the entire oil circuit system are also equipped
with soundproof cotton to ensure that the compressor can be used at low
temperatures. level Control the compressor noise does not exceed.
Standards developed by GOST 31336.

Product
Number Component Number Component
1 Body Shell 20 Diesel Tank Assembly
2 Heat Exchanger Assembly 21 Control Screen Support Frame
3 Poly Wind Ring Assembly 22 Control Screen Assembly
4 Screw Machine Lubricating Oil Pipe Assembly 23 Air Filter
Support Frame 1
5 Diesel Engine Coolant Pipe Assembly 24 Couplüing Assembly
6 Traction Support Wheel Assembly 25 Diesel Engine Air Filter
Assembly
7 Traction Support Frame 26 Diesel Engine Air Filter Connection
Pipe
8 Diesel Engine Exhaust Muffler Assembly 27 Diesel Engine Olil-
immersed Air Filter Assembly
9 Diesel Engine Exhaust Pipe Assembly 28 Screw Host Assembly
10 Body Frame Assembly 29 Screw Lubricating Oil Fiter Assembly
11 Wheel Assembly 30 Safety Valve
12 Main Engine Support Frame Assembly 31 Cold Dry Machine Oil-
immersed Air Filter Assembly
13 Main Engine Olil and Gas Exhaust Pipe Assembly 32 Air Filter
Support Frame 2
14 Oil and Gas Separator Assembly 33 Screw Machine Air Filter
Connection Pipe
15 Exhaust Pipe Assembly 34 Sarew Machine Air Filter Assembly
16 Minimum Pressure Valve Assembly 35 Cooling Fan Blade
17 Diesel Engine Host Assembly 36 Central Support Frame Assembly
18 Battery Assembly 37 Gear Ring Couplüing Assembly
19 Wheel Protection Shield 38 Intake Valve Assembly
Product Model
Model NO. Air de livery m.3/min MpaWorking pressure Motor power
Weight Dimension Re mark
KW kg mm
STYN-3/8-42 3 8 42 1300 2200*1650*1550 2 wheels/CNDI
STYN-4/8-42 4 8 42
STYN-5/8-42 5 8 42
STYN-6/8-46 6 8 46
STYN-7/8-60 7 8 60 1400 2250*1850*1800
STYN-10/8-76 10 8 76
STYN-13/8-92 13 8 92 2500 3550*2000*2250 4 wheels/CNDI
STYN-24/8-176 24 8 176


Minimum Order: 1 pieces
