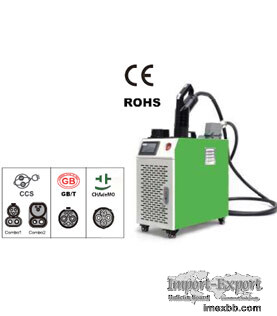

Mobile DC EV Charger

JAYUAN is a professional solar products company/inc that offer Solar Energy
Products & Solutions to satisfy your needs. As a professional Solar Energy
Products & Solutions company, JAYUAN provides a unique solar power system for
solar energy products.

These chargers are greatly useful for auto manufacturers, event organizers as
well as for travelling fleets and to provide services in remote areas where
vehicles may run out of power and need emergency charging. These chargers are
equipped with a DC plug and due to 22Kw or higher power can charge the vehicle
in a short time. Due to its compact size, the electric car dc fast charger is
easy to handle and transport.

Features of Jayuan Mobile DC EV Charger/EV Charger DC
Firmware USB Update
Optional RJ45 port Internet Connection
CCS GB/T and CHAdeMO Cable replacing support
Power Module easy replacing thanks to Open Door Design

Specification of Jayuan Mobile DC EV Charger/DC Charging EV
Model 3.5KW 7KW
AC Input Input Rating 110VAC ± 15% 220VAC  ± 15%
AC Input Connection L2, L3+PE(NEMA, JPS), L+N+PE
Max. Input Current 70A 32A
Frequency 50/60Hz
Efficiency 95.00%
DC Output Output Voltage Range 50~500VDC(CHAdeMo),
200~750VDC(CCS),150~450VDC(GB/T)
Max. Output Power 3.5KW 7KW
Max. Output Current 10A-350V, 4.5A-750V 20A-350V, 9A-750V
User Interface TFT-LCD Touch Panel LED
Push Buttons Start/Stop
Interface USB
Packing Dimension 450*240*180mm
Weight 20kg
Environmental Operating Temperature -20℃~50℃, power derating from 50℃
and above
Humidity 5%~90% RH,non-condensing
Altitude 2000m
IP Level IP23
Mechanical Cable Length 4m(CHAdeMo), 4m(CCS), 4m(GB/T) Customize Accept
Regulation Regulation IEC62196-3
Certification CE, ROHS
Charging Protocol CHAdeMO 2.0/DIN 70121

Details of Jayuan Mobile DC Charger for EV
Support Standard of Mobile DC EV Charger
