Mission Magnum Pump Parts List for sale

Our mission magnum pump parts are interchangeable with those (standard)
manufactured by mcm®, mission magnum, halco, mattco, harrisburg, national
oilwell, mission2500 supreme, spd mud hog, derrick premium 2500,TSC brand. All
spare parts are made of America standard.

High-Quality Interchangeable Mission Pump Parts
Our mission pump parts for sale are interchangeable with most of the
international brand including MCM, NOV, MISSION, HALCO, MATTCO, HARRISBURG,SPD
mud hog, which helps customer to source spare parts easily.We ensure our
customer can easily obtain technical support.We have a highly qualified
technical team to give complete technical solution for our pumps.

Mission Pump Parts include Mission Magnum I Pump Parts, Mission 2500 Supreme
Pump Parts, Mission Sandmaster Pump Parts, Mission XP Pump Parts size 3x2x13,
4x3x13, 5x4x14, 6x5x11,6x5x14, 8x6x11,8x6x14, 10x8x14, 12x10x23, 14x12x22 etc.
Mission magnum type heavy duty centrifugal sand pump available in various sizes
and setups, with hard iron casted left hand housing and impeller, mechanical
shaft seal with ceramic shaft sleeve and graphite backup packing. most common
2500 series pump will be equipped with those options, other configurations are
available.
SXP/XL Centrifugal Mission Pumps Main Parts
• Heavy Duty Pedestal - heavy duty frames are manufactured from cast iron for
high strength and durability to withstand high piping loads.
• Housing - The Mission magnum XP/XL frac pump has been beefed up in critical
wear areas for extra life. The concentric housing eliminates vibration,
turbulence, cavitation, and reduces bearing load and shaft deflection.

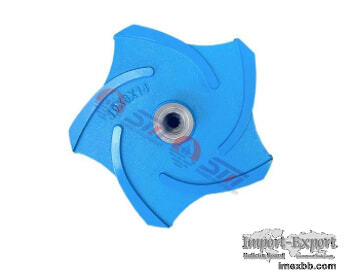

• Impeller (Open type) - Mission XP/XL pump open vane impeller design is
engineered to reduce turbulence, eliminate recirculation, lower radial and
thrust loads, and provide a smooth flow of fluid through the pump.
• Face Plate - The Mission XP/XL pump casing comes with replaceable wear
plates. This feature reduces the maintenance costs of housing replacement by
merely replacing the wear plates.
• Shearing Ring- Mission XP pump offers a shearing ring option to convert a
regular centrifugal pump to a shearing pump for special mud applications.
• Mechanical Seal - Mission XP/XL pump takes pride in carrying one of the
finest mechanical seals on the market, whether it be Tungsten-Tungsten,
Tungsten-Silicone, or Silicone-Carbide. They come with a highly polished
sealing faced and with piton bellows and stainless steel springs.
• Pump Bearings - Mission XP/XL pump uses nothing but the best and the finest
bearings in its pumps. The outboard bearing assembly consists of a pair of
angular contact bearings with high thrust load ratings and zero end play. The
heavy duty inboard bearing is a double row ball bearing with high radial load
ratings to compensate for the larger size impellers and heavy duty
applications.
• Labyrinth Seals (optional) - Mission XP pump installs labyrinth seals by
customer request in all its pumps to isolate the bearings from harmful
contaminants while keeping bearings lubricated.

Here is the mission magnum pump parts list for sale:
Item Qty Part No. SKU No. Description Material
1* 1 See below See below Casing Hard iron
1A 1 10399-46-1 648403012 Gasket,casing Vellumoid
1B 12 3932-61 648402014 Nut,casing Stl
1C 12 3862-76 648401115 Stud,casing Stl
1D 1 8505/4/1 86485503 Plug,Casing Drain Stl
1E 1 8505/4/1 646400507 Plug,flush line Stl
2* 1 See below See below Impeller Hard iron
2A 1 19110-72 64845082 Seal,impeller Viton
2B 1 7300239 Washer,impeller Stl
2C 1 7415648 Bolt,impeller lock Stl
3*# 1 22223-01-30 641116157 Stuffing box,mech.seal Hard
iron
3*& 1 20614-01-30 643365042 Stuffing box,packed Hard
iron
3A 2 3861-117 648401016 Bolt,stuffing box Stl
3B 1 19368-01 601499403 Grease fitting Brass
4 1 20622A 641103338 Gland assy,packing Stl 304
5A# 1 22451-1 648414308 Seal,mechanical Tungsten
5A~ 3 25014-04M-B 661007005 Packing, Shaft Kevlar
6 2 B3701A 601102494 Bolt assy,gland Stl 304
7 1 20612-02-33 646490557 Shaft 42CrMo
7A# 1 20943-21 641102182 Sleeve,shaft,M.S.
38CrMoAl
7A& 1 20613-21G-7A 641102181 Sleeve,shaft,Pack Stl
7B 1 4372/5/21 601212392 Key,shaft Stl
7C 1 23444-01-72 648415156 Seal,shaft sleeve Viton
8 1 22210-1A 641116108 Deflector assembly
Composite
9 1 20618-12-1 644302499 Frame,grease lubricated Cast
iron
9A 1 May-05 601474737 Plug,oil drain Iron
9B 3 2538-1H 648403608 Plug,oil fil Iron
9C 1 May-05 601474737 Plug, Frame Drain Iron
9D 1 Jan-67 601473689 Breather Stl
9E 1 Mar-78 601174584 Oiler Assembly
9F 1 A 662014131 662014131 Dip Stick Stl
9G 3 2538-1H Bolt, Casing Jack Stl
10A 1 20626 644303109 Cover,inboard bearing Iron
10B 1 20625 648408706 Gasket,I.B.Brg.Cover Vegetable fiber
10C 1 20619-01 648408300 Oil seal, I.B.Brg.Cover Buna-n
10D 2 Jan-61 601407505 Bolt, I.B.Brg.Cover Stl
10E 2 Feb-32 601408560 Nut, I.B.Brg.Cover Stl
10F 1 20620-01 648408409 Exclusion Seal, I.B. Brg. Cvr.
Buna-n
10G 1 21641-01 661010033 Grease.Fitting Stl
10H 1 648411908 Grease.Fitting Stl
11 1 20615-1 661009010 Bearing,inboard Vendor
12 1 20624-01-01 644308504 Housing,O.B.bearing Iron
12A 1 7496-253 648402295 Seal, O.B.Brg.housing Buna-n
12B 4 3861-138 648401057 Bolts, O.B.Brg.housing Stl
12C 2 3932-62 658404702 Nut, O.B.Brg.housing jam Stl
13 1 20617-01-01 641103296 Cover,O.B.Bearing Iron
13A 1 19368-01 661010020 Grease zerk, O.B.Brg.Cover
Stl
13B 1 7496-26 72200017 O-ring, O.B.Brg.Cover Buna-n
13C 1 20619-02 648408359 Oil seal, O.B.Brg.Cover Buna-n
13D 2 3861-139 648401081 Bolt, O.B.Brg.Cover Stl
14 2 20616-1 648408201s Bearing, O.B. Vendor
14A 1 Apr-24 648402105 Lockwasher,O.B.Bearing Stl
14B 1 Apr-23 648402055 Locknut, O.B.Bearing Stl
CASINGS ( including studs, nuts and gaskets)
Item Qty Part No. Processing# Description Material
1* 1 19203-01-30A 641101753 Casing,3x2x13 Hard iron
1* 1 19205-01-30A 641101902 Casing,4x3x13 Hard iron
1* 1 19222-01-30A 641102058 Casing,5x4x14 Hard iron
1* 1 19122-01-30A 641101456 Casing,6x5x11 Hard iron
1* 1 19123-01-30A 641101605 Casing, 6x5x14 Hard iron
1* 1 19763-01-30A 641102157 Casing, 8x6x11 Hard iron
1* 1 19763-01-30A 641101308 Casing,8x6x14 Hard iron
1* 1 20937-01-30A 641102322 Casing,10x8x14 Hard iron
IMPELLERS
Item Qty Part No. Processing# Description Material
2* 1 19204-XX-30 641215603 Impeller,3x2x13 Hard iron
2* 1 19206-XX-30 641217005 Impeller,4x3x13 Hard iron
2* 1 19224XXX-30 641217831 Impeller,5x4x14 Hard iron
2* 1 19121-XX-30 641211602 Impeller,6x5x11 Hard iron
2* 1 19121-XX-30 641212105 Impeller, 6x5x14 Hard
iron
2* 1 19121-XX-30 641211602 Impeller, 8x6x11 Hard
iron
2* 1 19116-XX-30 641209903 Impeller,8x6x14 Hard iron
2* 1 21867-XX-30 Impeller,10x8x14 Hard iron

Click to Enlarge
