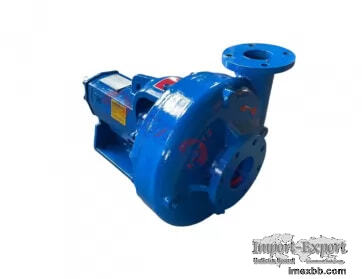

Mission Magnum Pump 4x3x13

We NOT ONLY bare pump, pump complete packages. We also offer replacement
Centrifugal Pumps, as well as refurbishment and repair of your existing pumps
bought from NOV mission magnum pump, Halco, FORUM BAKER SPD MUD HOG 2.5
Series Pump, O'Drill MCM, Forum Energy, Double Life, Southwest, ABCO, Mesco,
TSC, Midcontinents, Dupagro or any China mission pump supplier.

Mission Magnum Pump Introduction
SM Series Mission Magnum mud pump is designed basing on the imported Mission
Magnum I pump, which has been proven to be the best centrifugal design for
handling abrasive mud in drilling, well-servicing and industrial application,
as more powerful, more durable and easier to maintain than any conventional
pumps in use today. It always uses for transferring the drilling fluid or
mud/slurry with some solids or sea water.
Our material includes hard iron, ductile iron, high chrome iron, stainless
steel and al-bronze. We use resin sand casting and coating sand casting process
to cast raw material, and machine by CNC or NC machines. Except our own brand
pump, we also accept the customized brand pumps and spare parts.

Mission Magnum Pump Advantages
● Revolutionary design on Mission Magnum I series
● Size from 3 x 2 x 13 to 10 x 8 x 14
● Flow rates from a few gallons per minute up to 4300 GP
● Head pressure up to 550 feet
● Best utilized requiring up to 200HP
● For toughest jobs in drilling, production, well-servicing, and mineral
industrial
● Perfect for oil-based drilling mud, cement, slurry, mine dewatering, etc.
● Powerful, durable and easy to maintain
● Available in hard iron, stainless steel, high chrome alloy and aluminum
bronze fluid ends
● Process in resin/green sand casting, green sand casting, lost-form casting,
coated sand-casting investment
● Hydro-testing before painting and packing
● Interchangeable with other popular brands
● Available to be driven by electric motor, diesel engines, hydraulic motors
● Available configuration in horizontal, over-head belt, vertical, close-
coupled

Mission Magnum Pump Application
According to the different working conditions, mission magnum pumps 3x2x13,
4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14 can be used as Frac
discharge pump, Frac suction pump, Oil drilling centrifugal pump, electric
centrifugal transfer pump, Skid mounted mixing pump, Transfer pump, Trash pump,
Grinding pump, Circulating mud pump, Centrifugal sludge pump, Drilling fluid
centrifugal pump, Horizontal directional drilling pump, Denver pump, Filling
pump, Feeding pump, etc

Mission Magnum Pump Specifications
Model SM 10x8x14 SM 8x6x14 SM 8x6x11 SM 6x5x14
Discharge Volume (Max.) 4300 gpm 2600 gpm 2150 gpm 1825
gpm
Discharge Head (Max.) 175ft 205ft 120ft 225ft
PRM (min.-max.) 1200~1800 1200~1800 1200~1800 1200~1800
Inlet Diameter ( inch ) 10 8 8 6
Outlet Diameter ( inch ) 8 6 6 5
Weight (lb) 705 595 595 529
Dimension ( inch ) 38 x 26 x 26 38 x 25 x 25 38 x 24 x 24 36 x 22
x 21
Model SM 6x5x11 SM 5x4x14 SM 4x3x13 SM 3x2x13
Discharge Volume (Max.) 1800 gpm 1150 gpm 875 gpm 550 gpm
Discharge Head (Max.) 120ft 215ft 530ft 500ft
PRM (min.-max.) 1200~1800 1200~2100 1200~3600 1200~3600
Inlet Diameter ( inch ) 6 5 4 3
Outlet Diameter ( inch ) 5 4 3 2
Weight (lb) 529 529 445 432
Dimension ( inch ) 36 x 20 x 20 36 x 20 x 20 34 x 19 x 19 34 x 19
x 19
