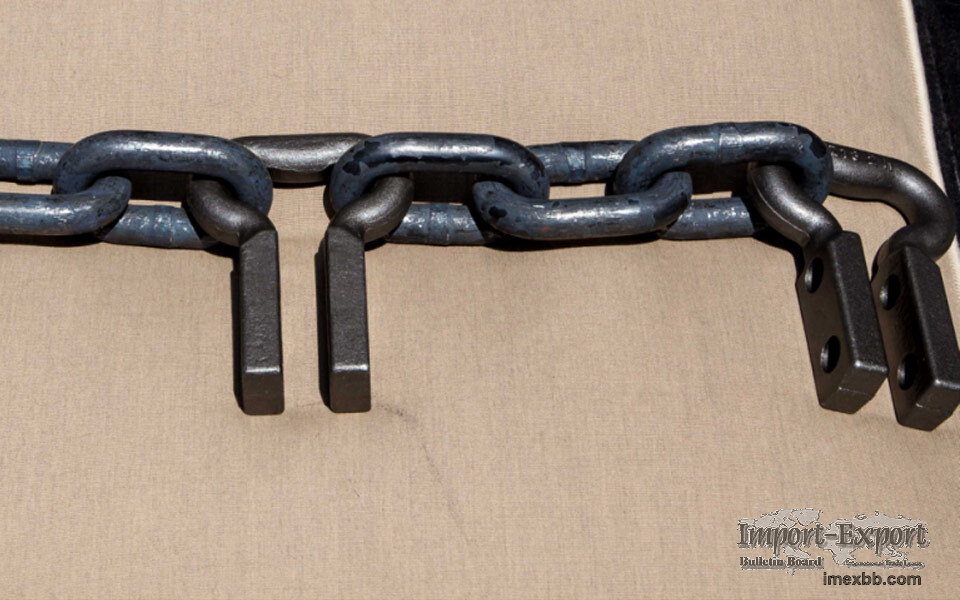

Mining Chain

The round link steel chains have become a proven standard in aggressive mining,
ash handling, cement production, and other heavy-duty applications due to their
high strength and flexibility in operation.

They are built to meet or exceed the German Institute for Standardization (DIN)
for dimensional consistency, interchangeability, and correct sprocket
engagement, most commonly with the DIN 22252 & DIN 764 specifications. They are
offered in both the standard hardness state (through-hardened) or with upgraded
surface hardness (case-hardened) to best combat abrasive wear.

Drawing of Mining Chain

Specification of Mining Chain

Code Chain Diameter
mm Pitch of the
chain link
mm Width Curve Radius
mm Proof Load
KN Breaking Load
KN Weight
kg/m
Inside
Min. Outside
Max. Class B Class C Class B Class C
MC1040 10 ±0.4 40 ±0.5 12 34 15 ±2.0 85
100 110 130 1.9
MC1450 14 ±0.4 50 ±0.5 17 48 22 ±2.0 150
200 190 250 4.0
MC1864 18 ±0.5 64 ±0.6 21 60 28 ±2.0 250
330 320 410 6.6
MC2286 22 ±0.7 86 ±0.9 26 74 34 ±2.0 380
490 480 610 9.5
MC2486 24 ±0.8 86 ±0.9 28 79 37 ±2.0 460
580 570 720 11.6
MC2692 26 ±0.8 92 ±0.9 30 86 40 ±2.0 540
680 670 850 13.7
MC30108 30 ±0.9 108 ±1.0 34 98 46 ±2.0 710
900 890 1130 18.0
MC34126 34 ±0.9 126 ±1.0 38 109 52 ±2.0 900
1160 1140 1450 22.7
