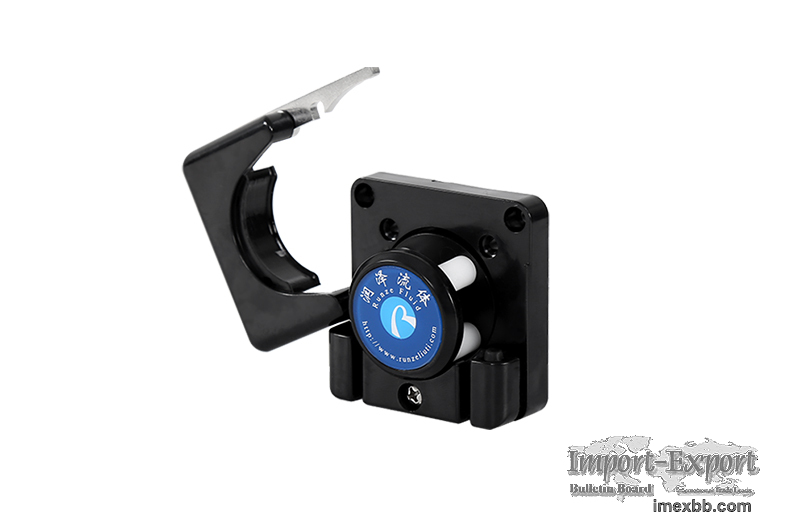

Miniature Peristaltic Pump

micro peristaltic pump head is very high cost performance model for small flow
rate applications, small layout, 4 rollers structure and easy tubing
replacement make it very welcomed by medical and lab equipment, flexible block
designs enable it self-adapt to different tube sizes in a wide range.

Specification of Miniature Peristaltic Pump

Model No. RZ1030-4
Pump Roller POM 4 rollers
Pump Head ABS engineering plastic
Fast Tubing YES
Pump Color Black
Compatible Motor Stepper motor/DC motor
Motor Speed 0-500rpm
Flow Range 0-170ml/min
Tubing Size ID0.64-3.0mm  WT0.8-1.0mm  OD≤5mm
Tubing Life Silicone≥200H  BPT Rubber≥1000H
Pressure Rating Up to 2 bar（30psi）
Working Environment 0-40℃, ＜80％ non-condensing
Max DB 65db
Suction 5 meters
Head 8 meters
Dimension (L*W*H) 57*65*23mm
Net Weight 58g
Fitting Peristaltic Tubing of Miniature Peristaltic Pump

1. Tubing life measured by pumping pure water under continuous working at the
room temperature 20℃ and no extra pressure until it cracks

2. Tubing life vary from different medium, motor speed, working environment,
the lower motor speed and mild fluids help to extend the service life of tubing

3. Please replace new pump tube regularly to achieve higher precision constant
liquid transfer

Nanjing Runze Fluid Control Equipment Co., LTD. is a professional pump company,
we provide Stepper Motor Peristaltic Pump, DC Motor Peristaltic Pump,
Laboratory Peristaltic Pump and etc. Want to know the micro peristaltic pump
price? Please contact us.

Minimum Order: 1 pieces
