mini quartz chamber 3000℃ vacuum arc melting furnace for 10g sample

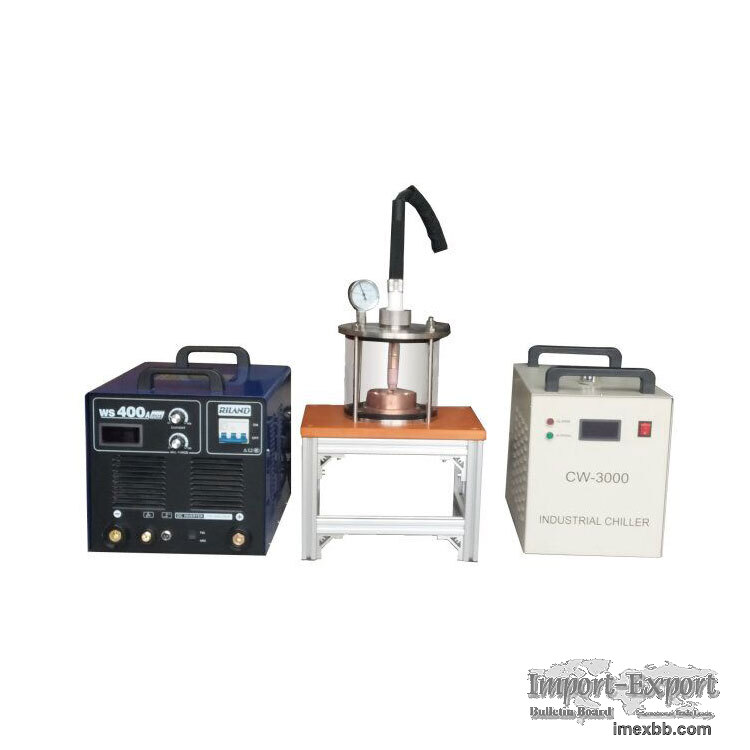

Mini Arc Melting Furnace
Mini Arc Melting Furnace (Quartz chamber) is a cheap and small vacuum arc melting
furnace with tungsten electrode and water-cooled copper crucible. The melting
temperature of the equipment can exceed 3000℃, and then the temperature is quickly
reduced. The transparent quartz chamber can be used to observe the melting of the
sample at 360 degrees. CY-MSM-130A is a high quality and inexpensive experimental
tool for sample smelting, heat treatment, and the phase diagram study.

Product model CY- MSM-130A
 Main features
1. Design melting sample amount ≦ 10 g, temperature can reach 3000 ℃.
2. Adopt transparent quartz cavity (with protective cover), which can observe the
melting situation of the sample at 360 °.
3. Water-cooled copper crucible.
4. The melting gun angle can be adjusted.
5. The vacuum interface is connected with a flexible bellows to ensure tightness.

Technical parameters
1. Vacuum gauge
A mechanical pressure gauge is installed on the device to measure the pressure
inside the chamber
Optional digital display anti-corrosion vacuum gauge
2. Arc power
Input voltage: 380VAC, three-phase
Max input current: 10A. (Requires a 40A air switch)
Output voltage / current: 22.6 V / 315A (DC)
Push button switch controls power output
3.Tungsten electrode
Equipped with a 4mm diameter tungsten electrode with water cooling on the head
Electrode gun angle adjustable for smelting multiple samples
Meltable sample amount <10 g, temperature reaches 3000 ℃
4.Crucible
Equipped with a water-cooled copper crucible with 4 work stations, each station is
Φ25mm × 7mm
Copper crucibles of various sizes can be customized according to customer
requirements
5. Chamber
Quartz chamber with Φ168 × 136mmH
Product specifications Furnace size
Furnace body: 500 mm L × 450 mm W × 720 mm H
Power supply: 460mm L × 306mm W × 305mm H

Standard accessories
1 set Melting furnace host
1 Argon arc welder
1 Chiller
1 furnace frame
1 Vacuum pump

Optional accessories
Suction Casting Parts (Please contact our company when you need to buy)
Application considerations
1.Vacuum pump (optional)
Optional various vacuum pumps
 Vacuum degree: 10 ^ -2 torr (mechanical pump)
10 ^ -5 torr (molecular pump system)
2.Water chiller (optional)
When the equipment is running, cooling water is needed to cool the arc gun and the
copper crucible. Optional circulating water chiller CY-5000 can be purchased from
our company (water pipe specifications are 12mm outer diameter x 8mm inner
diameter)

Minimum Order: 1 sets
